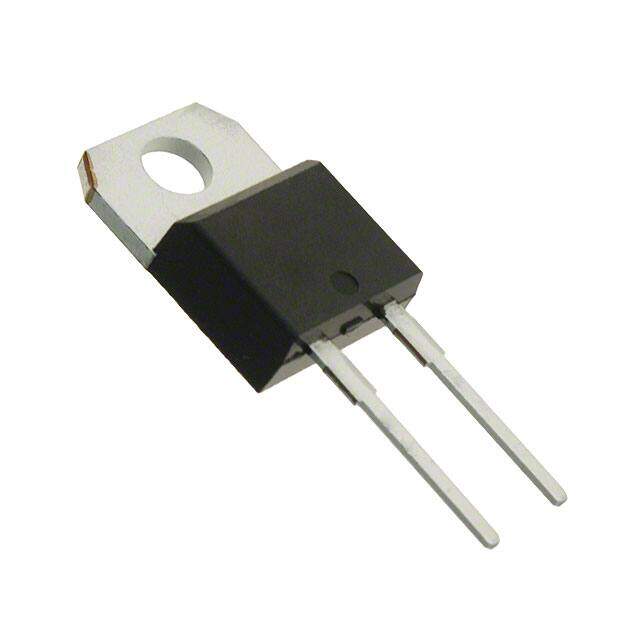

STPR1520D
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 200V 15A TO220AC
PDF
/
Inventory: 8266
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Recovery Time 30 ns
Reverse Voltage 200V
Peak Non-Repetitive Surge Current 150A
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Reverse Current 50μA
Reverse Recovery Time 30 ns
Number of Phases 1
Average Rectified Current 15A
Max Reverse Voltage (DC) 200V
Application ULTRA FAST RECOVERY
Max Surge Current 150A
Operating Temperature - Junction 150°C Max
Forward Current 15A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 30A
Current - Reverse Leakage @ Vr 50μA @ 200V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Pin Count 3
Base Part Number STPR1520
Current Rating 15A
Technology AVALANCHE
Voltage - Rated DC 200V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case TO-220-2
Mounting Type Through Hole
Mount Through Hole
