SPV1002T40
RoHS
RoHS compliant

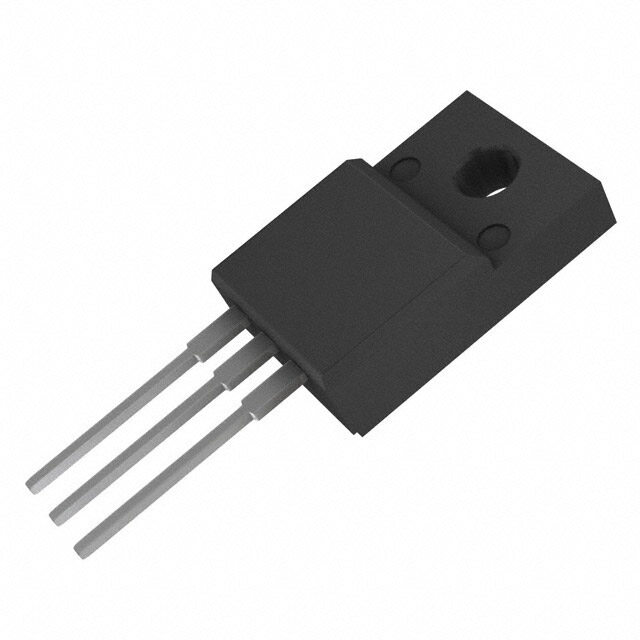

RoHS compliantPackage TO-220-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 40V 16A TO220
PDF
/
Buying Options
Total Price: USD $5.7
Unit Price: USD $5.7019
≥1 USD $5.7019
≥10 USD $4.67875
≥100 USD $4.53245
≥500 USD $4.38615
≥1000 USD $4.23985
Inventory: 1715
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3
Number of Pins 3
Diode Element Material SILICON
Technical
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 175°C
Min Operating Temperature -40°C
Additional Feature LOW LEAKAGE CURRENT
HTS Code 8541.10.00.80
Terminal Position SINGLE
Base Part Number SPV1002
Pin Count 3
Number of Elements 1
Configuration SINGLE
Diode Type Standard
Current - Reverse Leakage @ Vr 1μA @ 40V
Voltage - Forward (Vf) (Max) @ If 180mV @ 16A
Case Connection CATHODE
Forward Current 16A
Max Reverse Leakage Current 10μA
Operating Temperature - Junction -45°C~175°C
Max Surge Current 250A
Application GENERAL PURPOSE
Current - Average Rectified (Io) 16A DC
Max Reverse Voltage (DC) 40V
Average Rectified Current 16A
Number of Phases 1
Max Repetitive Reverse Voltage (Vrrm) 40V
JEDEC-95 Code TO-220AB
Peak Non-Repetitive Surge Current 250A
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
