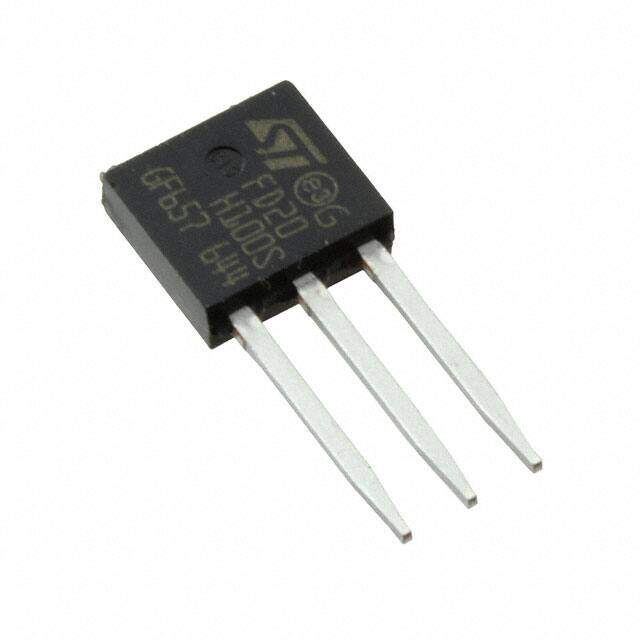

FERD20H100SH
RoHS
RoHS compliant
RoHS compliantPackage TO-251-3 Short Leads, IPak, TO-251AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE RECT 100V 20A IPAK
PDF
/
Inventory: 4622
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 140μA
Non-rep Pk Forward Current-Max 150A
Number of Phases 1
Average Rectified Current 20A
Max Reverse Voltage (DC) 100V
Voltage - DC Reverse (Vr) (Max) 100V
Application EFFICIENCY
Operating Temperature - Junction 175°C Max
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 705mV @ 20A
Current - Reverse Leakage @ Vr 140μA @ 100V
Diode Type FERD (Field Effect Rectifier Diode)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSIP-T3
Base Part Number FERD20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tube
Physical
Diode Element Material SILICON
Package / Case TO-251-3 Short Leads, IPak, TO-251AA
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 7 months ago)
