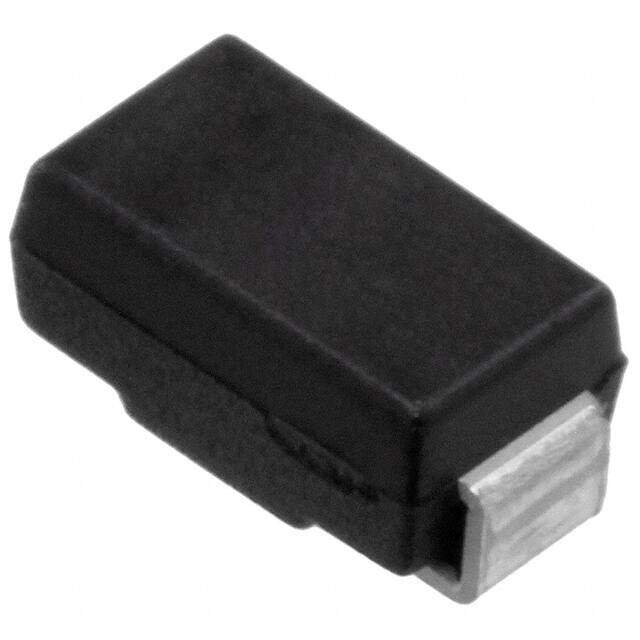

SJPX-F2
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 200V 1.5A SJP
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.07895
≥1 USD $3.07895
≥10 USD $2.527
≥100 USD $2.44815
≥500 USD $2.36835
≥1000 USD $2.2895
Inventory: 15513
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Non-rep Pk Forward Current-Max 30A
Reverse Recovery Time 30 ns
Number of Phases 1
Average Rectified Current 1.5A
Max Reverse Voltage (DC) 200V
Voltage - DC Reverse (Vr) (Max) 200V
Application ULTRA FAST RECOVERY
Operating Temperature - Junction -40°C~150°C
Voltage - Forward (Vf) (Max) @ If 980mV @ 1.5A
Current - Reverse Leakage @ Vr 10μA @ 200V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code R-PDSO-C2
Pin Count 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form C BEND
Terminal Position DUAL
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
