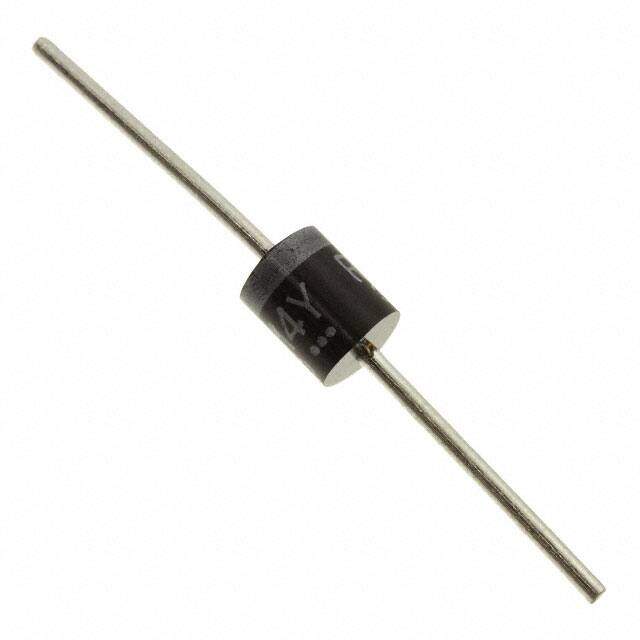

RM 4Z
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 200V 3A AXIAL
PDF
/
Inventory: 4745
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Non-rep Pk Forward Current-Max 200A
Rep Pk Reverse Voltage-Max 200V
Number of Phases 1
Current - Average Rectified (Io) 3A
Voltage - DC Reverse (Vr) (Max) 200V
Application GENERAL PURPOSE
Output Current-Max 1.7A
Operating Temperature - Junction -40°C~150°C
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 950mV @ 3A
Current - Reverse Leakage @ Vr 10μA @ 200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code O-PALF-W2
Pin Count 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2012
Packaging Bulk
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case Axial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
