FMXK-1086S
RoHS
/

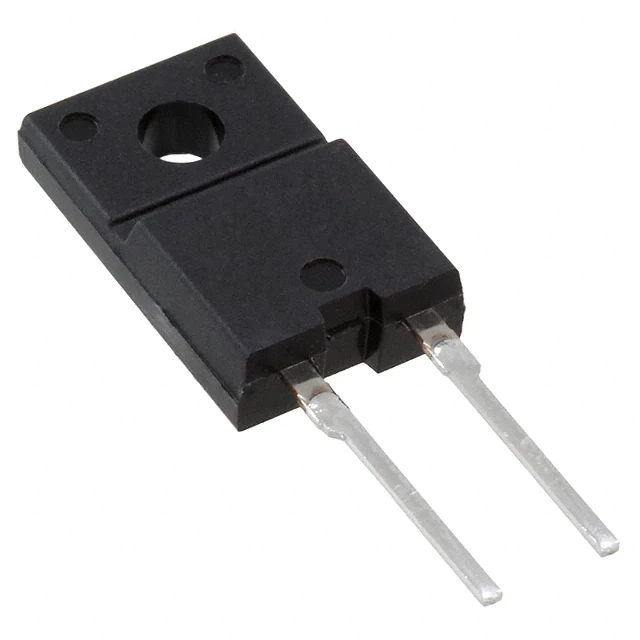

Package TO-220-2 Full Pack
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 8A TO220F-2L
PDF
/
Buying Options
Total Price: USD $4.05
Unit Price: USD $4.047
≥1 USD $4.047
≥10 USD $3.32025
≥100 USD $3.2167
≥500 USD $3.11315
≥1000 USD $3.0096
Inventory: 7009
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Non-rep Pk Forward Current-Max 100A
Reverse Recovery Time 27 ns
Number of Phases 1
Average Rectified Current 8A
Max Reverse Voltage (DC) 600V
Voltage - DC Reverse (Vr) (Max) 600V
Application GENERAL PURPOSE
Output Current-Max 8A
Operating Temperature - Junction -40°C~150°C
Voltage - Forward (Vf) (Max) @ If 1.75V @ 8A
Current - Reverse Leakage @ Vr 30μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T2
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2011
Packaging Tube
Physical
Diode Element Material SILICON
Package / Case TO-220-2 Full Pack
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
