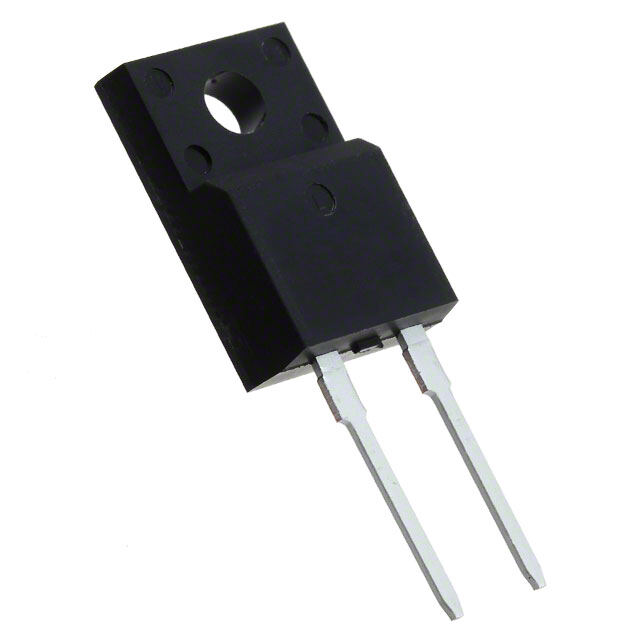

SCS315AMC
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2 Full Pack
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODES SILICON CARBIDE
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
≥10 USD $4.660832
≥100 USD $4.170232
≥500 USD $3.679632
≥1000 USD $3.311669
≥3000 USD $3.103162
Inventory: 197
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 75μA
Non-rep Pk Forward Current-Max 95A
Capacitance @ Vr, F 750pF @ 1V 1MHz
JEDEC-95 Code TO-220AC
Rep Pk Reverse Voltage-Max 650V
Reverse Recovery Time 0ns
Number of Phases 1
Current - Average Rectified (Io) 15A DC
Voltage - DC Reverse (Vr) (Max) 650V
Application GENERAL PURPOSE
Output Current-Max 15A
Operating Temperature - Junction 175°C Max
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.5V @ 15A
Current - Reverse Leakage @ Vr 75μA @ 650V
Diode Type Silicon Carbide Schottky
Speed No Recovery Time > 500mA (Io)
Power Dissipation-Max 39W
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSFM-T2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Additional Feature PD-CASE
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Physical
Surface Mount NO
Package / Case TO-220-2 Full Pack
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
