SCS220KGHRC
RoHS
RoHS compliant
RoHS compliantPackage TO-220-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 1200V 20A TO220-2
PDF
/
Buying Options
Total Price: USD $134.04
Unit Price: USD $134.03835
≥1 USD $134.03835
≥10 USD $129.5705
≥100 USD $116.166
Inventory: 1098
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 400μA
Capacitance @ Vr, F 1060pF @ 1V 1MHz
JEDEC-95 Code TO-220AC
Rep Pk Reverse Voltage-Max 1200V
Reverse Recovery Time 0ns
Number of Phases 1
Current - Average Rectified (Io) 20A DC
Voltage - DC Reverse (Vr) (Max) 1200V
Application GENERAL PURPOSE
Operating Temperature - Junction 175°C Max
Forward Current 20A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.6V @ 20A
Current - Reverse Leakage @ Vr 400μA @ 1200V
Diode Type Silicon Carbide Schottky
Speed No Recovery Time > 500mA (Io)
Power Dissipation-Max 210W
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSFM-T2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
HTS Code 8541.10.00.80
Additional Feature PD-CASE
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Automotive, AEC-Q101
Published 2011
Packaging Tube
Physical
Surface Mount NO
Package / Case TO-220-2
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks

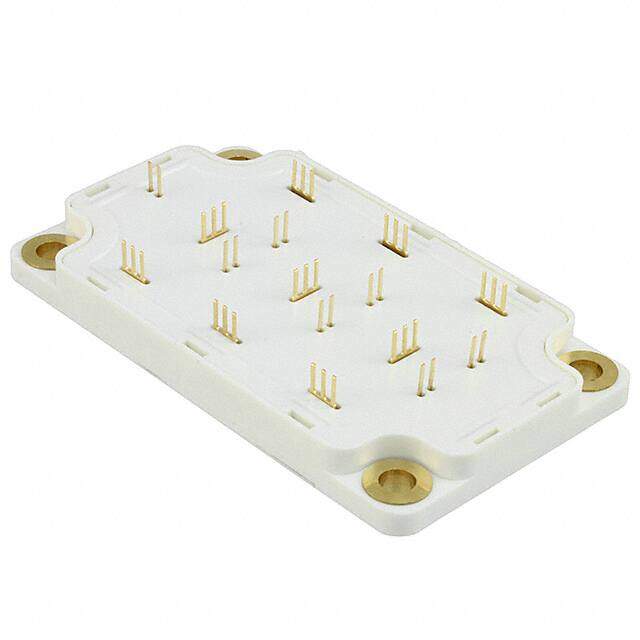

Alternative Model
