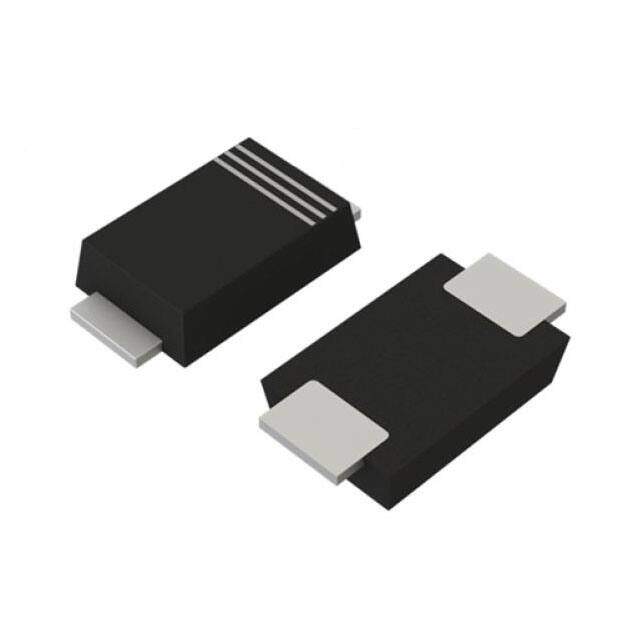

RB168LAM100TFTR
RoHS
RoHS compliant
RoHS compliantPackage SOD-128
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
AUTOMOTIVE SCHOTTKY BARRIER DIOD
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.3036
≥100 USD $0.182424
≥500 USD $0.168872
≥1000 USD $0.114831
Inventory: 1467
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Test Voltage 100V
Breakdown Voltage-Min 100V
Reverse Current-Max 0.4μA
Forward Voltage-Max 0.81V
Non-rep Pk Forward Current-Max 40A
Rep Pk Reverse Voltage-Max 100V
Number of Phases 1
Current - Average Rectified (Io) 1A
Voltage - DC Reverse (Vr) (Max) 100V
Application GENERAL PURPOSE
Output Current-Max 1A
Operating Temperature - Junction 150°C Max
Current - Reverse Leakage @ Vr 400nA @ 100V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-PDSO-F2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position DUAL
HTS Code 8541.10.00.80
Additional Feature HIGH RELIABILITY
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q101
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-128
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
