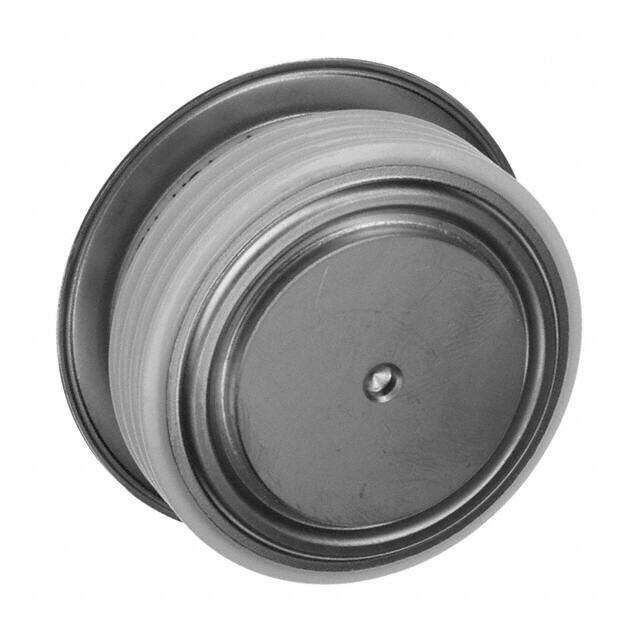

R9G01222XX
RoHS
RoHS compliant
RoHS compliantPackage DO-200AB, B-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE MODULE 1.2KV 2200A DO200AB
PDF
/
Inventory: 8888
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case DO-200AB, B-PUK
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2000
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Additional Feature FREE WHEELING DIODE
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position END
Terminal Form NO LEAD
Reach Compliance Code unknown
Operating Temperature (Max) 150°C
Operating Temperature (Min) -40°C
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 150mA @ 1200V
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1500A
Forward Current 2.2kA
Output Current-Max 3400A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1200V
Current - Average Rectified (Io) 2200A
Max Reverse Voltage (DC) 1.2kV
Average Rectified Current 2.2kA
Number of Phases 1
Reverse Recovery Time 15 μs
Reverse Current-Max 150000μA
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
