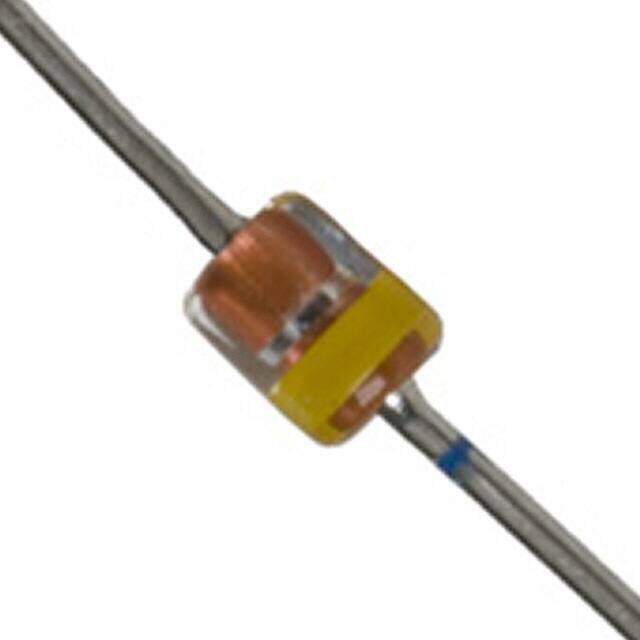

MA2C16600E
RoHS
/
Package DO-204AG, DO-34, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 50V 100MA DO34
PDF
/
Inventory: 4988
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case DO-204AG, DO-34, Axial
Supplier Device Package DO34-A1
Technical
Packaging Tape & Box (TB)
Published 2004
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Capacitance 2pF
Voltage - Rated DC 50V
Current Rating 100mA
Base Part Number MA2C166
Polarity Standard
Speed Small Signal =< 200mA (Io), Any Speed
Diode Type Standard
Current - Reverse Leakage @ Vr 5μA @ 50V
Output Current 100mA
Voltage - Forward (Vf) (Max) @ If 1.2V @ 100mA
Operating Temperature - Junction 200°C Max
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 100mA
Max Reverse Voltage (DC) 50V
Average Rectified Current 100mA
Reverse Recovery Time 4 ns
Capacitance @ Vr, F 2pF @ 0V 1MHz
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
