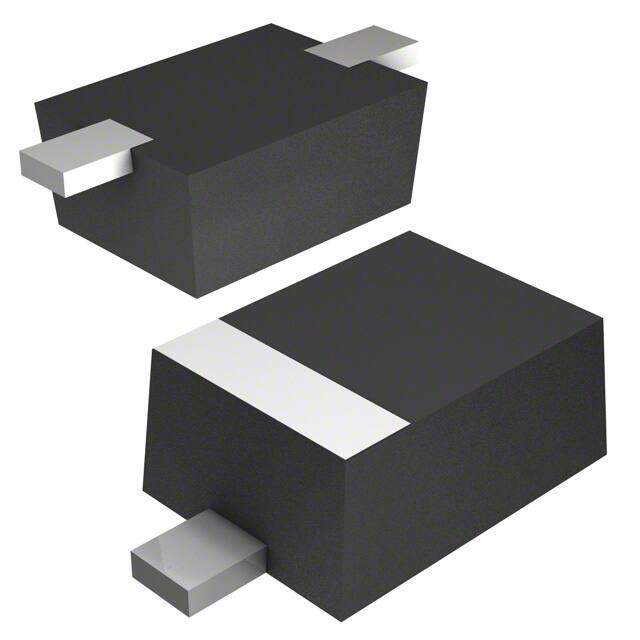

DB2J31000L
RoHS
RoHS compliant
RoHS compliantPackage SC-90, SOD-323F
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 200MA SMINI2
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26885
≥1 USD $0.26885
≥10 USD $0.2204
≥100 USD $0.21375
≥500 USD $0.2071
≥1000 USD $0.20045
Inventory: 13203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Published 2010
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -55°C
HTS Code 8541.10.00.60
Subcategory Rectifier Diodes
Terminal Position DUAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DB2J310
Number of Elements 1
Element Configuration Single
Speed Small Signal =< 200mA (Io), Any Speed
Diode Type Schottky
Current - Reverse Leakage @ Vr 200μA @ 30V
Voltage - Forward (Vf) (Max) @ If 470mV @ 200mA
Forward Current 200mA
Max Reverse Leakage Current 200μA
Operating Temperature - Junction 125°C Max
Max Surge Current 1A
Forward Voltage 470mV
Max Reverse Voltage (DC) 30V
Average Rectified Current 200mA
Reverse Recovery Time 1.6 ns
Peak Reverse Current 200μA
Max Repetitive Reverse Voltage (Vrrm) 30V
Capacitance @ Vr, F 4.5pF @ 10V 1MHz
Peak Non-Repetitive Surge Current 1A
Max Forward Surge Current (Ifsm) 300mA
Recovery Time 1.6 ns
Frequency Band VERY HIGH FREQUENCY
Dimensions
Height 700μm
Length 1.7mm
Width 1.25mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
