NTSAF345T3G
RoHS
RoHS compliant

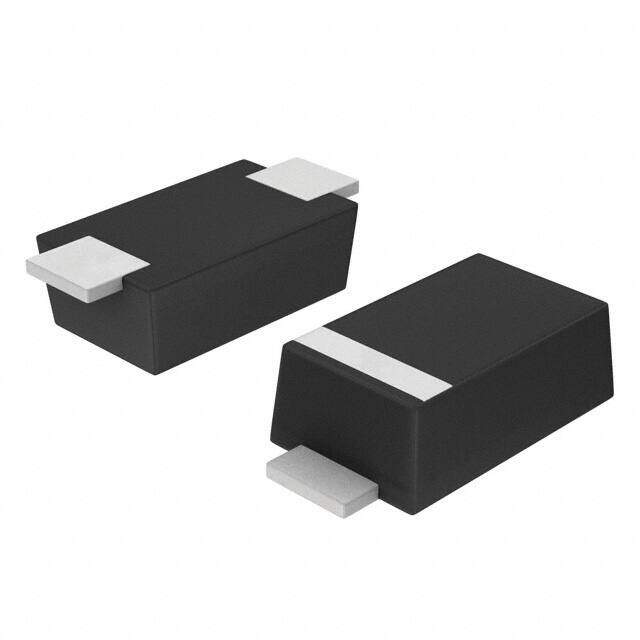

RoHS compliantPackage DO-221AC, SMA Flat Leads
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Trench Schottky Rectifier, Low forward Voltage, 45V 3A
PDF
/
Buying Options
Total Price: USD $0.08
Unit Price: USD $0.08
≥1 USD $0.08
≥500 USD $0.05882
≥1000 USD $0.04902
≥2000 USD $0.04497
≥5000 USD $0.04203
≥10000 USD $0.0391
≥15000 USD $0.03781
≥50000 USD $2.22424
Inventory: 5925
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Surface Mount YES
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q101
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin (Sn)
Additional Feature FREE WHEELING DIODE, LOW POWER LOSS
Terminal Position DUAL
Reach Compliance Code not_compliant
JESD-30 Code R-PDSO-F2
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Voltage - Forward (Vf) (Max) @ If 630mV @ 3A
Operating Temperature - Junction -65°C~150°C
Output Current-Max 3A
Application EFFICIENCY
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 3A
Number of Phases 1
Rep Pk Reverse Voltage-Max 45V
Non-rep Pk Forward Current-Max 100A
Reverse Current-Max 7.5μA
Compliance
RoHS Status ROHS3 Compliant
