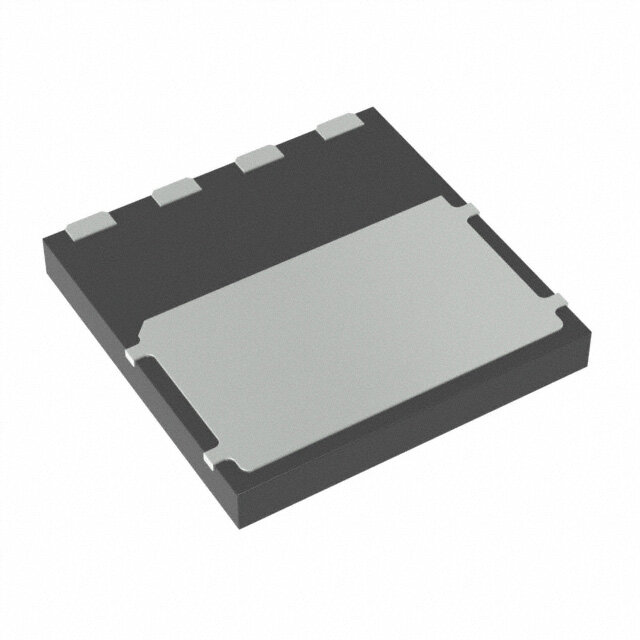

FFSM1065A
RoHS
/
Package 4-PowerTSFN
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SBD 650V 4PQFN
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.7752
≥1 USD $3.7752
≥10 USD $3.17152
≥100 USD $2.56564
≥500 USD $2.28059
≥1000 USD $1.952755
Inventory: 1094
Minimum: 1
-
+
Technical Details
Technical
Reverse Current-Max 200μA
Non-rep Pk Forward Current-Max 580A
Capacitance @ Vr, F 575pF @ 1V 100kHz
Rep Pk Reverse Voltage-Max 650V
Reverse Recovery Time 0ns
Number of Phases 1
Current - Average Rectified (Io) 11A DC
Voltage - DC Reverse (Vr) (Max) 650V
Application EFFICIENCY
Output Current-Max 10A
Operating Temperature - Junction -55°C~175°C
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.75V @ 10A
Current - Reverse Leakage @ Vr 200μA @ 650V
Diode Type Silicon Carbide Schottky
Speed No Recovery Time > 500mA (Io)
Power Dissipation-Max 42W
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code S-PSSO-N4
Reach Compliance Code not_compliant
Terminal Form NO LEAD
Terminal Position SINGLE
Technology AVALANCHE
Additional Feature HIGH RELIABILITY, PD-CASE
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 4-PowerTSFN
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 33 Weeks
