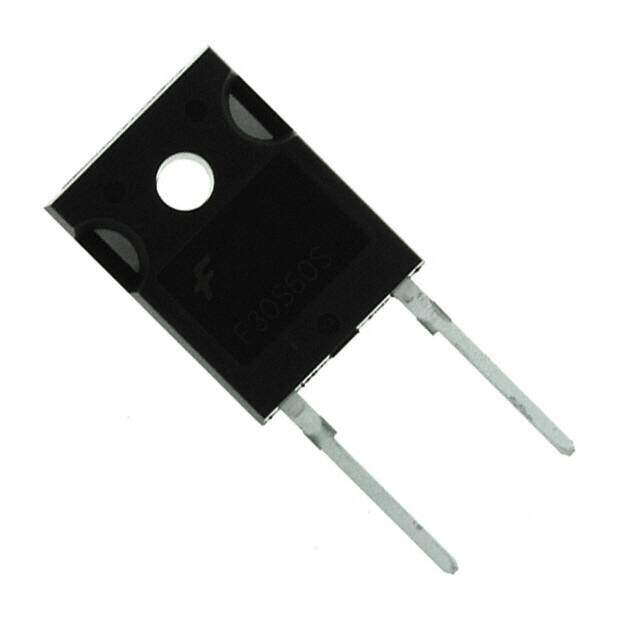

FFH30S60STU
RoHS
RoHS compliant
RoHS compliantPackage TO-247-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 30A TO247
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.37035
≥1 USD $5.37035
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-2
Number of Pins 2
Weight 6.33g
Diode Element Material SILICON
Technical
Packaging Tube
Published 2007
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Additional Feature HIGH RELIABILITY, FREE WHEELING DIODE
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 100μA @ 600V
Voltage - Forward (Vf) (Max) @ If 2.6V @ 30A
Forward Current 30A
Operating Temperature - Junction -65°C~150°C
Max Surge Current 300A
Application HYPERFAST SOFT RECOVERY
Forward Voltage 2.6V
Max Reverse Voltage (DC) 600V
Average Rectified Current 30A
Number of Phases 1
Reverse Recovery Time 40 ns
Peak Reverse Current 100μA
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Non-Repetitive Surge Current 300A
Reverse Voltage 600V
Max Forward Surge Current (Ifsm) 300A
Recovery Time 40 ns
Dimensions
Height 21mm
Length 15.95mm
Width 5.03mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
