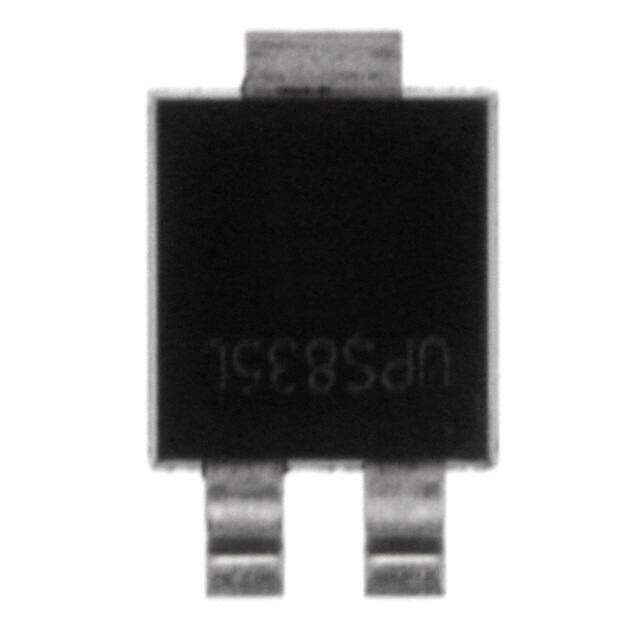

UPS835L/TR13
RoHS
/
Package Powermite?3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Schottky 35V 8A 3-Pin(2+Tab) Power Mite T/R
PDF
/
Inventory: 5255
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Powermite?3
Number of Pins 3
Technical
Packaging Tape & Reel (TR)
Published 1997
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Base Part Number UPS835
Element Configuration Common Anode
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 1.4mA @ 35V
Voltage - Forward (Vf) (Max) @ If 510mV @ 8A
Forward Current 8A
Operating Temperature - Junction -55°C~125°C
Forward Voltage 510mV
Max Reverse Voltage (DC) 35V
Average Rectified Current 8A
Peak Reverse Current 1.4mA
Max Repetitive Reverse Voltage (Vrrm) 35V
Peak Non-Repetitive Surge Current 100A
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
