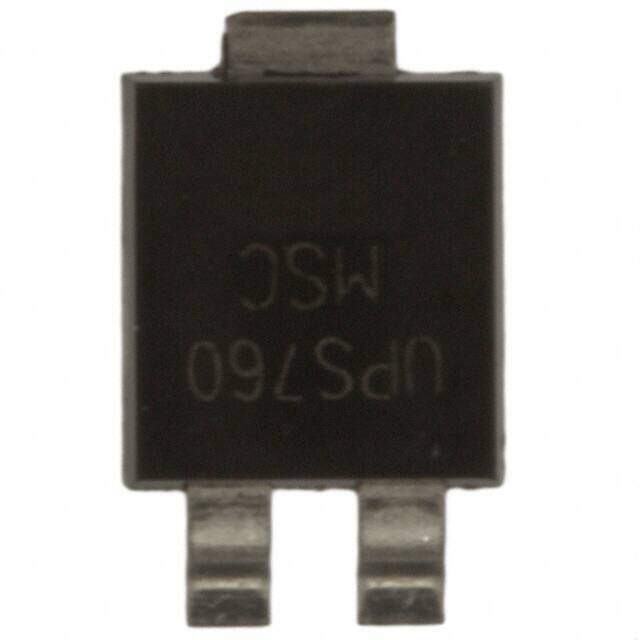

UPS760E3/TR13
RoHS
RoHS compliant
RoHS compliantPackage Powermite?3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 60V 7A POWERMITE3
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.7656
Inventory: 10037
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 4.09mm
Length 4.43mm
Height 1.14mm
Technical
Reverse Voltage (DC) 60V
Max Forward Surge Current (Ifsm) 100A
Peak Non-Repetitive Surge Current 100A
Capacitance @ Vr, F 375pF @ 4V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 60V
Peak Reverse Current 15μA
Number of Phases 1
Average Rectified Current 7A
Max Reverse Voltage (DC) 60V
Forward Voltage 550mV
Application EFFICIENCY
Operating Temperature - Junction -55°C~125°C
Forward Current 7A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 600mV @ 7A
Output Current 7A
Current - Reverse Leakage @ Vr 100μA @ 60V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Common Anode
Polarity Standard
Number of Elements 1
JESD-30 Code R-PSSO-G2
Pin Count 2
Base Part Number UPS760
Time@Peak Reflow Temperature-Max (s) 30
Current Rating 7A
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position SINGLE
Voltage - Rated DC 60V
HTS Code 8541.10.00.80
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish MATTE TIN OVER COPPER
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 1997
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case Powermite?3
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 19 Weeks
