SBR2540
RoHS
/
Package /
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description

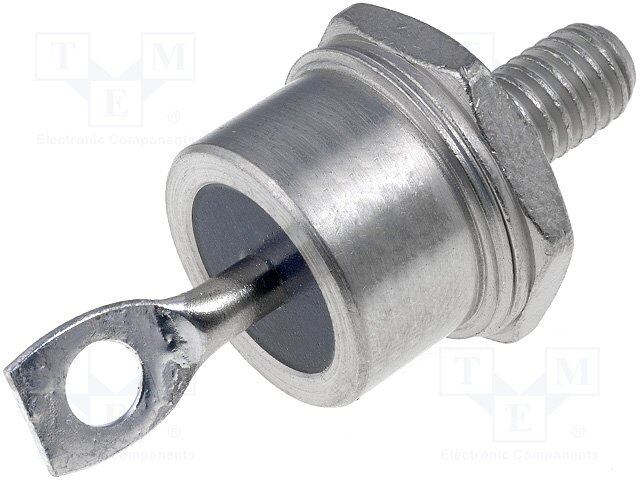

Diode Schottky 40V 30A 2-Pin DO-4
PDF
/
Buying Options
Total Price: USD $105.8
Unit Price: USD $105.797421
≥1 USD $105.797421
≥200 USD $42.213674
≥500 USD $40.803619
≥1000 USD $40.106469
Inventory: 1702
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Stud
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 1997
JESD-609 Code e0
Pbfree Code no
Part Status Active
Number of Terminations 1
ECCN Code EAR99
Terminal Finish TIN LEAD
Max Operating Temperature 150°C
Min Operating Temperature -55°C
Additional Feature REVERSE ENERGY TESTED
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Technology SCHOTTKY
Terminal Position UPPER
Terminal Form SOLDER LUG
Pin Count 1
JESD-30 Code O-MUPM-D1
Number of Elements 1
Element Configuration Single
Diode Type RECTIFIER DIODE
Case Connection CATHODE
Forward Current 25A
Application GENERAL PURPOSE
Forward Voltage 580mV
Number of Phases 1
Peak Reverse Current 2mA
Max Repetitive Reverse Voltage (Vrrm) 40V
Peak Non-Repetitive Surge Current 600A
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
