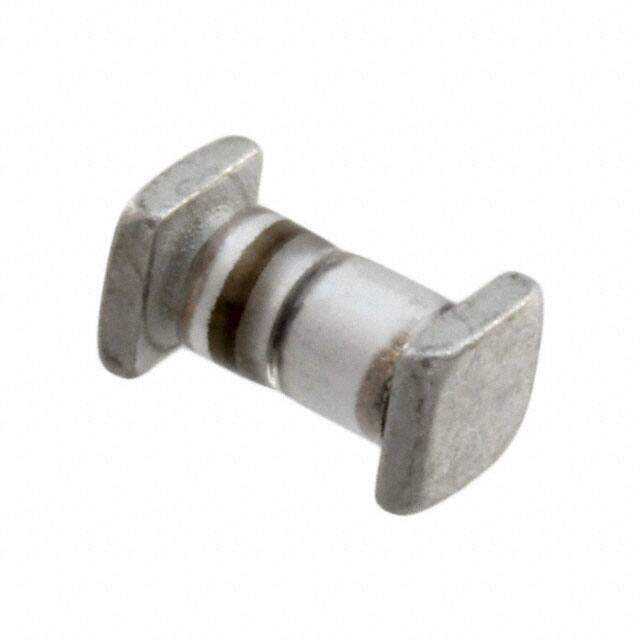

JANTX1N6623US
RoHS
/
Package SQ-MELF, A
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 880V 1A 2-Pin A-MELF
PDF
/
Buying Options
Total Price: USD $66.09
Unit Price: USD $66.0877
≥1 USD $66.0877
≥10 USD $64.0224
≥100 USD $61.9571
≥500 USD $59.8918
≥1000 USD $53.6959
Inventory: 2503
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Physical
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SQ-MELF, A
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 1997
Series Military, MIL-PRF-19500/585
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 150°C
Min Operating Temperature -65°C
Additional Feature HIGH RELIABILITY
HTS Code 8541.10.00.80
Technology AVALANCHE
Terminal Position END
Terminal Form WRAP AROUND
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 2
Reference Standard MIL-19500
Qualification Status Qualified
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 500nA @ 880V
Voltage - Forward (Vf) (Max) @ If 1.55V @ 1A
Case Connection ISOLATED
Forward Current 1A
Operating Temperature - Junction -65°C~150°C
Output Current-Max 1A
Max Reverse Voltage (DC) 880V
Average Rectified Current 1A
Reverse Recovery Time 50 ns
Max Repetitive Reverse Voltage (Vrrm) 880V
Capacitance @ Vr, F 10pF @ 10V 1MHz
Compliance
RoHS Status Non-RoHS Compliant
