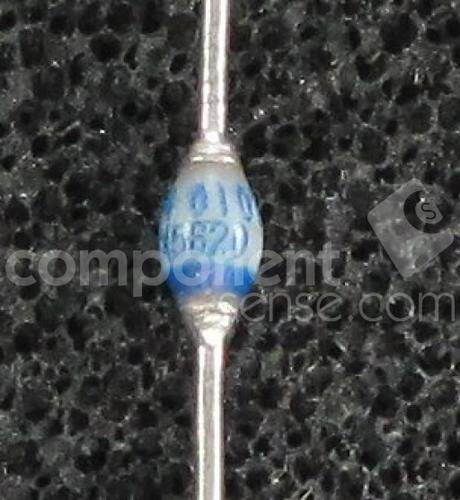

JANTX1N5620
RoHS
/
Package A, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 800V 1A 2-Pin Case A
PDF
/
Buying Options
Total Price: USD $4.86
Unit Price: USD $4.8576
≥1 USD $4.8576
≥10 USD $4.5144
Inventory: 170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case A, Axial
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 1997
Series Military, MIL-PRF-19500/427
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Max Operating Temperature 200°C
Min Operating Temperature -65°C
Additional Feature HIGH RELIABILITY
HTS Code 8541.10.00.80
Technology AVALANCHE
Terminal Form WIRE
Pin Count 2
Reference Standard MIL-19500
Qualification Status Qualified
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 500nA @ 800V
Voltage - Forward (Vf) (Max) @ If 1.3V @ 3A
Case Connection ISOLATED
Operating Temperature - Junction -65°C~200°C
Output Current-Max 1A
Forward Voltage 1.3V
Max Reverse Voltage (DC) 800V
Average Rectified Current 1A
Reverse Recovery Time 2 μs
Peak Reverse Current 500nA
Max Repetitive Reverse Voltage (Vrrm) 800V
Peak Non-Repetitive Surge Current 30A
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
