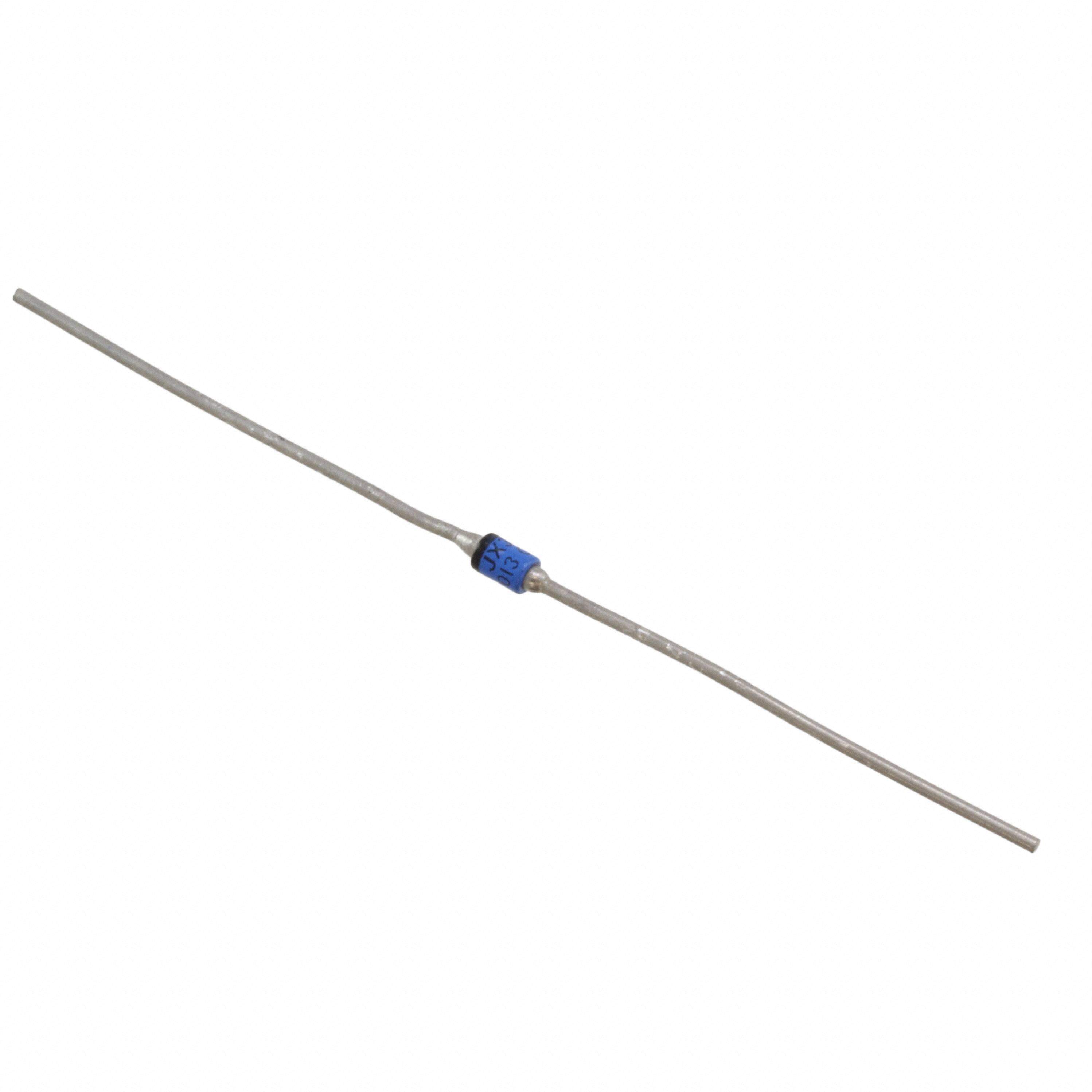

JANTX1N3957
RoHS
/
Package A, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 1KV 1A 2-Pin Case A
PDF
/
Inventory: 6012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Peak Non-Repetitive Surge Current 30A
JEDEC-95 Code DO-41
Max Repetitive Reverse Voltage (Vrrm) 1kV
Peak Reverse Current 1μA
Average Rectified Current 1A
Max Reverse Voltage (DC) 1kV
Forward Voltage 1.1V
Voltage - DC Reverse (Vr) (Max) 1000V
Output Current-Max 1A
Operating Temperature - Junction -65°C~175°C
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Current - Reverse Leakage @ Vr 1μA @ 1000V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Qualified
Reference Standard MIL-19500
Pin Count 2
Terminal Form WIRE
HTS Code 8541.10.00.80
Additional Feature HIGH RELIABILITY
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-PRF-19500/228
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case A, Axial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 12 Weeks
