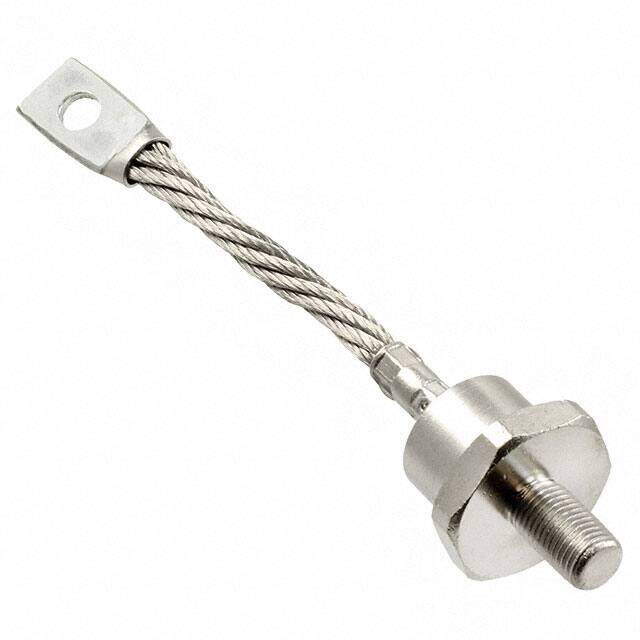

JANTX1N3289
RoHS
/
Package DO-205AA, DO-8, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 200V 100A 2-Pin DO-8
PDF
/
Inventory: 2413
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Peak Non-Repetitive Surge Current 1.6kA
Max Repetitive Reverse Voltage (Vrrm) 200V
Peak Reverse Current 10mA
Number of Phases 1
Forward Voltage 1.55V
Application POWER
Operating Temperature - Junction -65°C~200°C
Forward Current 100A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.55V @ 310A
Current - Reverse Leakage @ Vr 10mA @ 200V
Diode Type Standard
Speed Small Signal =< 200mA (Io), Any Speed
Element Configuration Single
Number of Elements 1
Qualification Status Qualified
JESD-30 Code O-MUPM-H1
Pin Count 1
Terminal Form HIGH CURRENT CABLE
Terminal Position UPPER
HTS Code 8541.10.00.80
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Military, MIL-PRF-19500/246
Published 1997
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-205AA, DO-8, Stud
Mounting Type Stud Mount
Mount Stud
