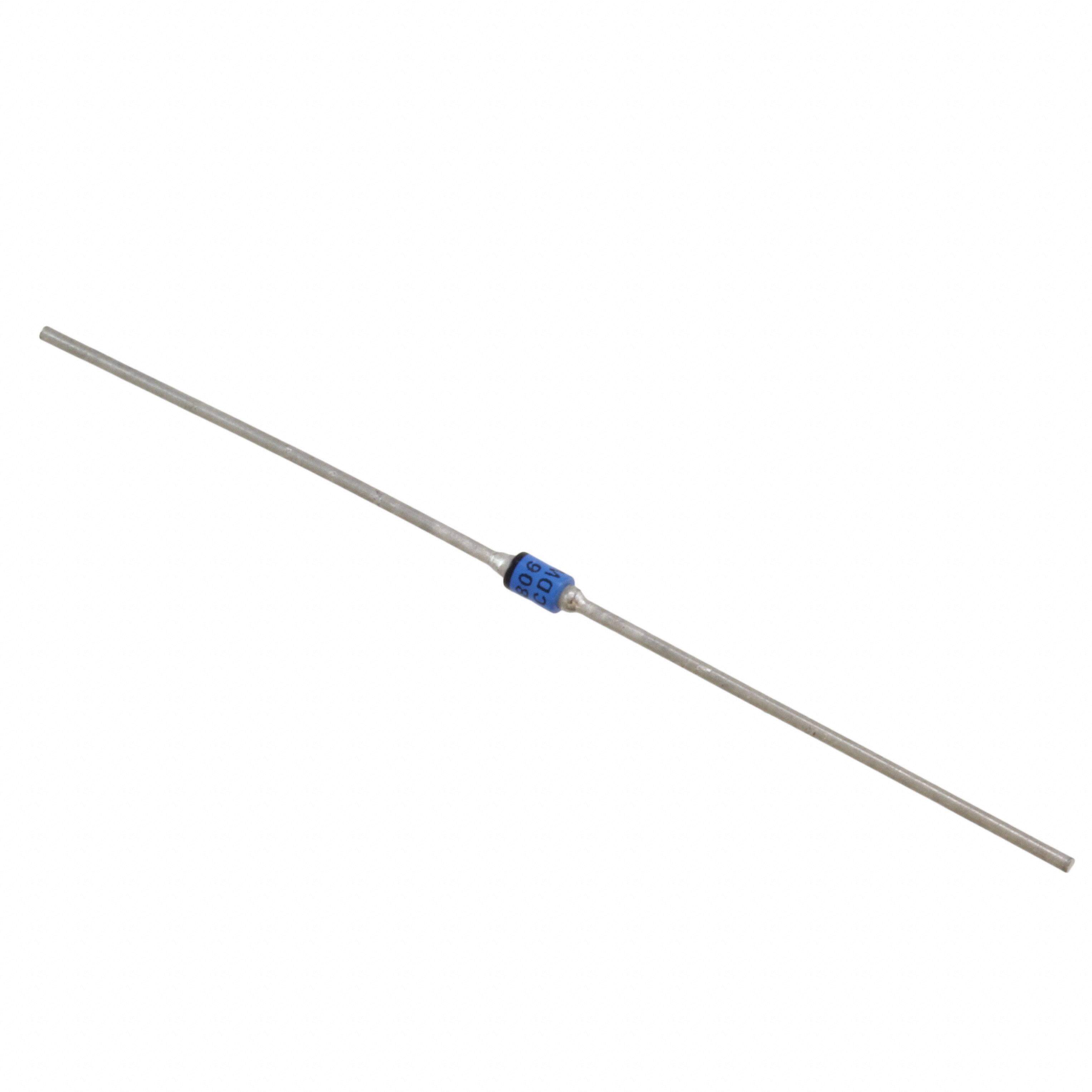

JAN1N5806
RoHS
/
Package A, Axial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 150V 2.5A 2-Pin Case A
PDF
/
Buying Options
Total Price: USD $21.48
Unit Price: USD $21.47855
≥1 USD $21.47855
≥10 USD $17.62345
≥100 USD $17.07245
≥500 USD $16.5224
≥1000 USD $15.9714
Inventory: 2509
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case A, Axial
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 1997
Series Military, MIL-PRF-19500/477
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Max Operating Temperature 175°C
Min Operating Temperature -65°C
Additional Feature HIGH RELIABILITY
HTS Code 8541.10.00.80
Technology AVALANCHE
Terminal Form WIRE
Reference Standard MIL-19500
Qualification Status Qualified
Number of Elements 1
Power Dissipation-Max 3W
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 1μA @ 150V
Voltage - Forward (Vf) (Max) @ If 975mV @ 2.5A
Case Connection ISOLATED
Operating Temperature - Junction -65°C~175°C
Output Current-Max 1A
Forward Voltage 975mV
Max Reverse Voltage (DC) 150V
Average Rectified Current 2.5A
Number of Phases 1
Reverse Recovery Time 25 ns
Peak Reverse Current 1μA
Max Repetitive Reverse Voltage (Vrrm) 150V
Capacitance @ Vr, F 25pF @ 10V 1MHz
Peak Non-Repetitive Surge Current 35A
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Alternative Model
