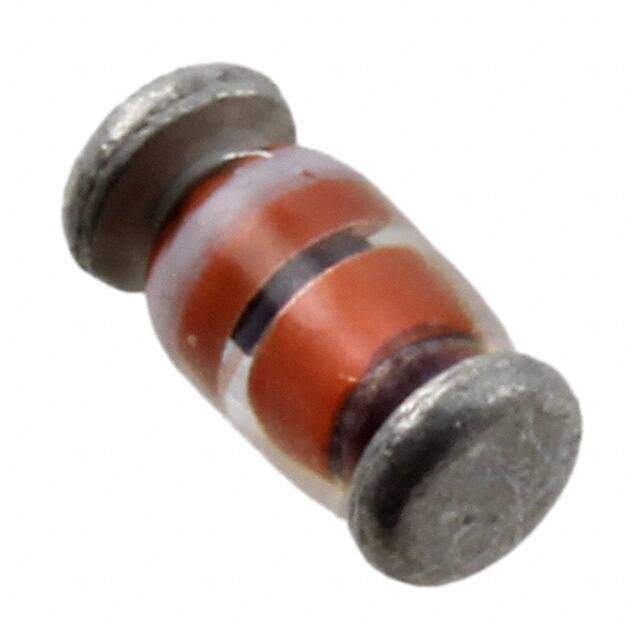

CDLL4153
RoHS
/
Package DO-213AA
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 75V 150MA DO213AA
PDF
/
Inventory: 1744
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Natural Thermal Resistance 100 °C/W
Peak Non-Repetitive Surge Current 2A
Capacitance @ Vr, F 2pF @ 0V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 50V
Peak Reverse Current 50nA
Reverse Recovery Time 4 ns
Average Rectified Current 150mA
Max Reverse Voltage (DC) 75V
Output Current-Max 0.15A
Operating Temperature - Junction -65°C~175°C
Forward Current 150mA
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 880mV @ 20mA
Current - Reverse Leakage @ Vr 50nA @ 50V
Diode Type Standard
Speed Small Signal =< 200mA (Io), Any Speed
Element Configuration Single
Number of Elements 1
JESD-30 Code O-LELF-R2
Pin Count 2
Terminal Form WRAP AROUND
Terminal Position END
HTS Code 8541.10.00.70
Additional Feature METALLURGICALLY BONDED
Min Operating Temperature -65°C
Max Operating Temperature 175°C
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1999
Packaging Bulk
Physical
Diode Element Material SILICON
Package / Case DO-213AA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 8 Weeks
