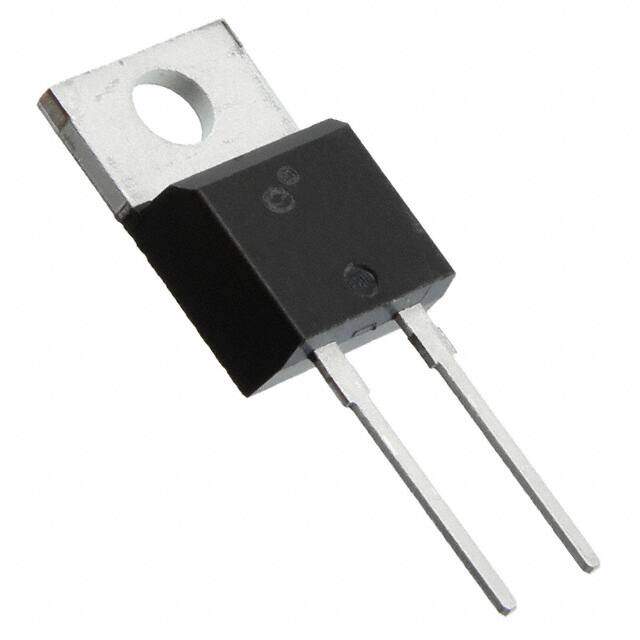

APT20SCD65K
RoHS
/
Package TO-220-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SILICON 650V 32A TO220
PDF
/
Buying Options
Total Price: USD $5.94
Unit Price: USD $5.9356
≥1 USD $5.9356
≥10 USD $4.87065
≥100 USD $4.7177
≥500 USD $4.5657
≥1000 USD $4.4137
Inventory: 9405
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-2
Technical
Packaging Bulk
Published 1999
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Additional Feature HIGH RELIABILITY, LOW LEAKAGE CURRENT, PD-CASE
HTS Code 8541.10.00.80
Terminal Position SINGLE
JESD-30 Code R-PSFM-T2
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE
Power Dissipation-Max 114W
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 400μA @ 650V
Voltage - Forward (Vf) (Max) @ If 1.8V @ 20A
Case Connection CATHODE
Operating Temperature - Junction -55°C~150°C
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 650V
Max Reverse Voltage (DC) 650V
Average Rectified Current 32A
Number of Phases 1
Reverse Recovery Time 0 s
JEDEC-95 Code TO-220AC
Capacitance @ Vr, F 680pF @ 100mV 1MHz
Non-rep Pk Forward Current-Max 165A
Reverse Current-Max 400μA
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
