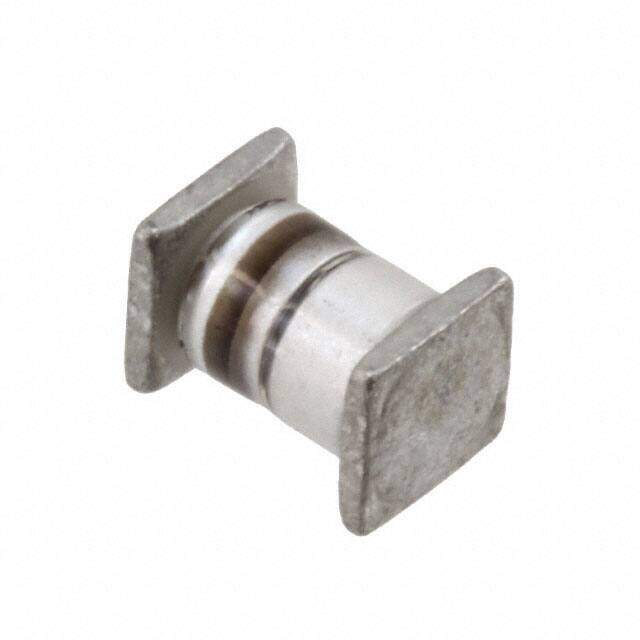

1N6627US
RoHS
/
Package SQ-MELF, A
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Switching 440V 1.75A 2-Pin E-MELF
PDF
/
Buying Options
Total Price: USD $13.42
Unit Price: USD $13.42445
≥1 USD $13.42445
≥10 USD $11.01525
≥100 USD $10.6704
≥500 USD $10.3265
≥1000 USD $9.9826
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening Yes
Technical
Peak Non-Repetitive Surge Current 75A
Capacitance @ Vr, F 40pF @ 10V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 440V
Peak Reverse Current 2μA
Reverse Recovery Time 30 ns
Number of Phases 1
Average Rectified Current 1.75A
Max Reverse Voltage (DC) 440V
Forward Voltage 1.5V
Application HIGH VOLTAGE ULTRA FAST RECOVERY
Output Current-Max 4A
Operating Temperature - Junction -65°C~150°C
Forward Current 1.75A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.35V @ 2A
Current - Reverse Leakage @ Vr 2μA @ 440V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
Pin Count 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WRAP AROUND
Terminal Position END
Technology AVALANCHE
HTS Code 8541.10.00.80
Additional Feature METALLURGICALLY BONDED
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1997
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case SQ-MELF, A
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 17 Weeks
