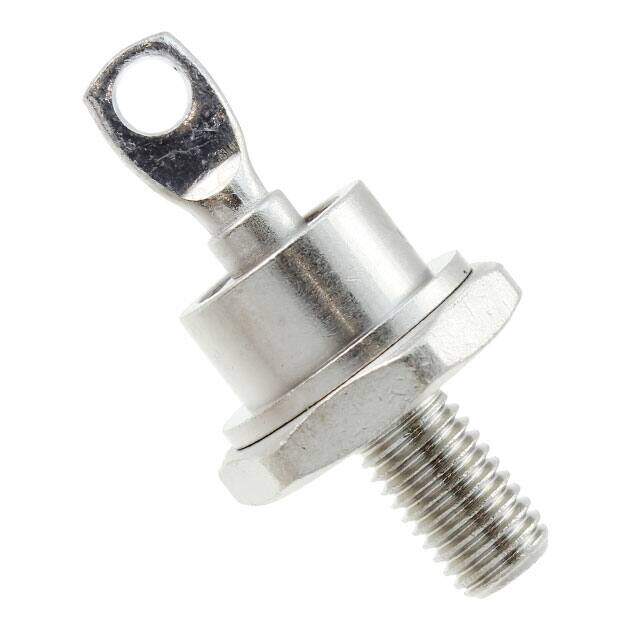

1N6392
RoHS
/
Package DO-203AB, DO-5, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Diode Schottky 45V 60A 2-Pin DO-5
PDF
/
Buying Options
Total Price: USD $165.49
Unit Price: USD $165.493671
≥1 USD $165.493671
≥200 USD $66.033618
≥500 USD $63.826634
≥1000 USD $62.736927
Inventory: 9498
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Peak Non-Repetitive Surge Current 1kA
Capacitance @ Vr, F 3000pF @ 5V 1MHz
Max Repetitive Reverse Voltage (Vrrm) 45V
Number of Phases 1
Average Rectified Current 54A
Max Reverse Voltage (DC) 45V
Forward Voltage 820mV
Application GENERAL PURPOSE
Operating Temperature - Junction -55°C~175°C
Forward Current 60A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 820mV @ 120A
Current - Reverse Leakage @ Vr 2mA @ 45V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-MUPM-D1
Pin Count 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
HTS Code 8541.10.00.80
Additional Feature REVERSE ENERGY TESTED
Min Operating Temperature -55°C
Max Operating Temperature 175°C
Terminal Finish TIN LEAD
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 1997
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-203AB, DO-5, Stud
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 2 weeks ago)
Factory Lead Time 20 Weeks
Alternative Model
