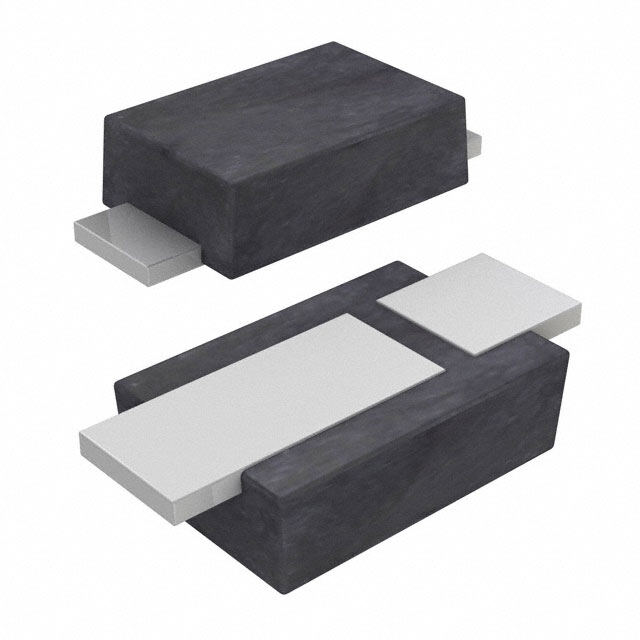

SMD215HE-TP
RoHS
RoHS compliant
RoHS compliantPackage SOD-123H
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 150V 2A SOD123HE
PDF
/
Inventory: 1172
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Reverse Current-Max 500μA
Non-rep Pk Forward Current-Max 40A
Rep Pk Reverse Voltage-Max 150V
Number of Phases 1
Current - Average Rectified (Io) 2A
Voltage - DC Reverse (Vr) (Max) 150V
Application GENERAL PURPOSE
Output Current-Max 2A
Operating Temperature - Junction -55°C~125°C
Voltage - Forward (Vf) (Max) @ If 900mV @ 2A
Current - Reverse Leakage @ Vr 500μA @ 150V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-PDSO-F2
Time@Peak Reflow Temperature-Max (s) 10
Peak Reflow Temperature (Cel) 260
Terminal Form FLAT
Terminal Position DUAL
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2006
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case SOD-123H
Mounting Type Surface Mount
