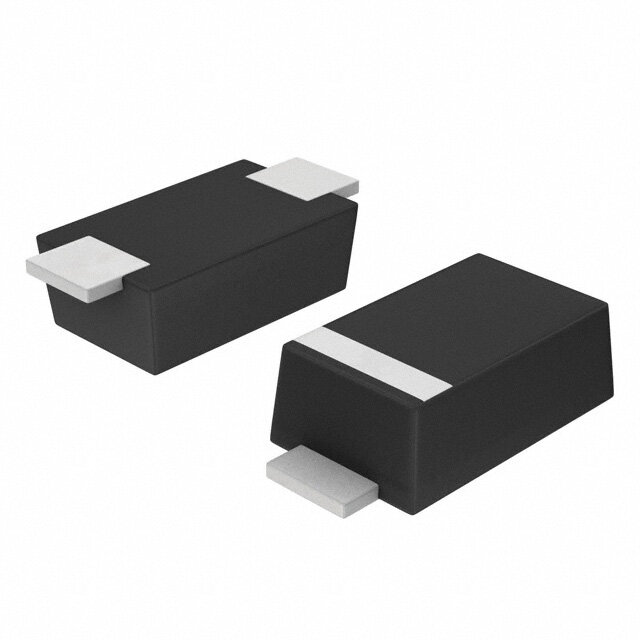

SK36AFL-TP
RoHS
RoHS compliant
RoHS compliantPackage DO-221AC, SMA Flat Leads
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 60V 3A DO221AC
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.32032
≥100 USD $0.192016
≥500 USD $0.17776
≥1000 USD $0.120877
≥3000 USD $0.111276
Inventory: 1234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Surface Mount YES
Diode Element Material SILICON
Technical
Packaging Tape & Reel (TR)
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8541.10.00.80
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDSO-F2
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 500μA @ 60V
Voltage - Forward (Vf) (Max) @ If 750mV @ 3A
Operating Temperature - Junction -50°C~125°C
Output Current-Max 3A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 3A
Number of Phases 1
Rep Pk Reverse Voltage-Max 60V
Capacitance @ Vr, F 150pF @ 4V 1MHz
Non-rep Pk Forward Current-Max 80A
Reverse Current-Max 500μA
Compliance
RoHS Status ROHS3 Compliant
