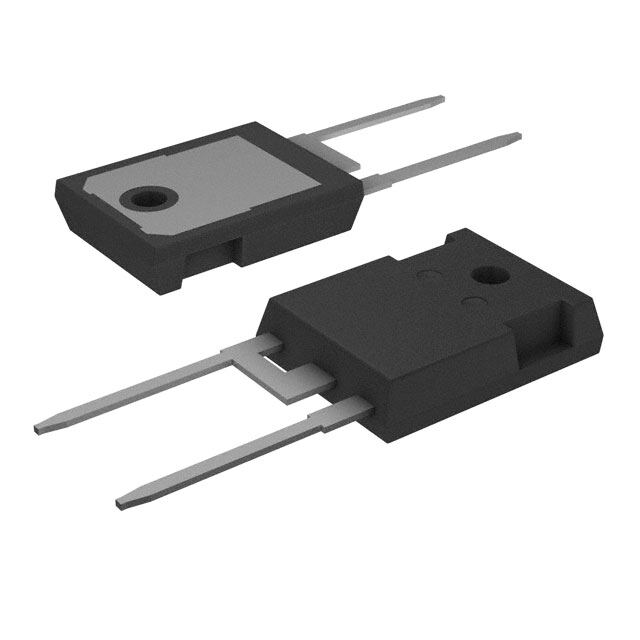

LFUSCD16065B
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SIC SCHOTKY 650V 16A TO247
PDF
/
Buying Options
Total Price: USD $7.16
Unit Price: USD $7.162368
≥1 USD $7.162368
≥10 USD $6.756956
≥100 USD $6.374475
≥500 USD $6.013663
≥1000 USD $5.673268
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-3
Technical
Packaging Tube
Published 2016
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Additional Feature PD-CASE
HTS Code 8541.10.00.80
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSFM-T3
Operating Temperature (Max) 175°C
Number of Elements 1
Configuration SINGLE
Power Dissipation-Max 115W
Speed No Recovery Time > 500mA (Io)
Diode Type Silicon Carbide Schottky
Current - Reverse Leakage @ Vr 460μA @ 650V
Voltage - Forward (Vf) (Max) @ If 1.7V @ 16A
Case Connection CATHODE
Operating Temperature - Junction 175°C Max
Application EFFICIENCY
Current - Average Rectified (Io) 16A DC
Max Reverse Voltage (DC) 650V
Average Rectified Current 16A
Number of Phases 1
Reverse Recovery Time 0ns
Capacitance @ Vr, F 520pF @ 1V 1MHz
Non-rep Pk Forward Current-Max 96A
Reverse Current-Max 460μA
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
