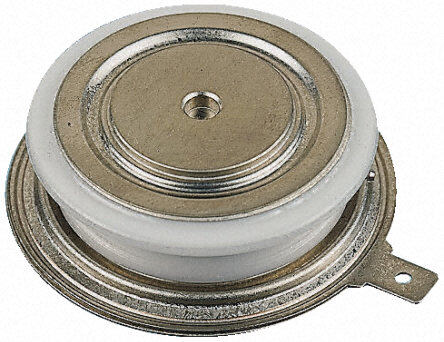

W1263YC250
RoHS
RoHS compliant
RoHS compliantPackage DO-200AB, B-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
IXYS W1263YC250, Capsule High Voltage Diode, 2500V 1200A, 17s, 2-Pin
PDF
/
Buying Options
Total Price: USD $71.09
Unit Price: USD $71.0864
≥1 USD $71.0864
Inventory: 65
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Chassis Mount
Package / Case DO-200AB, B-PUK
Number of Pins 2
Supplier Device Package W2
Technical
Packaging Bulk
Published 2004
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 175°C
Min Operating Temperature -40°C
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 30mA @ 2500V
Voltage - Forward (Vf) (Max) @ If 2.12V @ 3770A
Forward Current 1.2kA
Operating Temperature - Junction -40°C~175°C
Voltage - DC Reverse (Vr) (Max) 2500V
Current - Average Rectified (Io) 1263A
Reverse Recovery Time 17 μs
Peak Reverse Current 30mA
Max Repetitive Reverse Voltage (Vrrm) 2.5kV
Max Forward Surge Current (Ifsm) 12.9kA
Dimensions
Height 15.1mm
Length 42mm
Width 42mm
Compliance
RoHS Status ROHS3 Compliant
