W0944WC120
RoHS
RoHS compliant
RoHS compliantPackage DO-200AB, B-PUK
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description

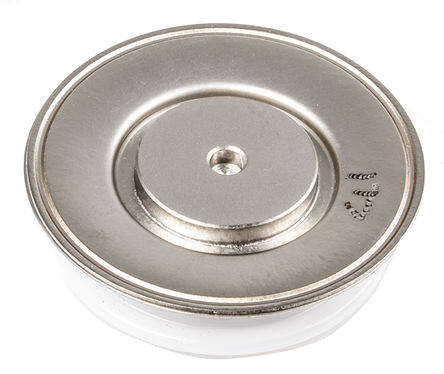

IXYS W0944WC120, Capsule Diode, 1200V 945A, 2-Pin DO-200AA
PDF
/
Buying Options
Total Price: USD $141.05
Unit Price: USD $141.04616
≥1 USD $141.04616
≥192 USD $56.278771
≥504 USD $54.398699
≥1008 USD $53.469165
Inventory: 5243
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 14.4mm
Diameter 42mm
Technical
Max Forward Surge Current (Ifsm) 9kA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 15mA
Current - Average Rectified (Io) 944A
Voltage - DC Reverse (Vr) (Max) 1200V
Operating Temperature - Junction -40°C~190°C
Forward Current 945A
Voltage - Forward (Vf) (Max) @ If 1.45V @ 1930A
Current - Reverse Leakage @ Vr 15mA @ 1200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Min Operating Temperature -40°C
Max Operating Temperature 190°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2004
Packaging Bulk
Physical
Supplier Device Package W1
Number of Pins 2
Package / Case DO-200AB, B-PUK
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 8 Weeks
