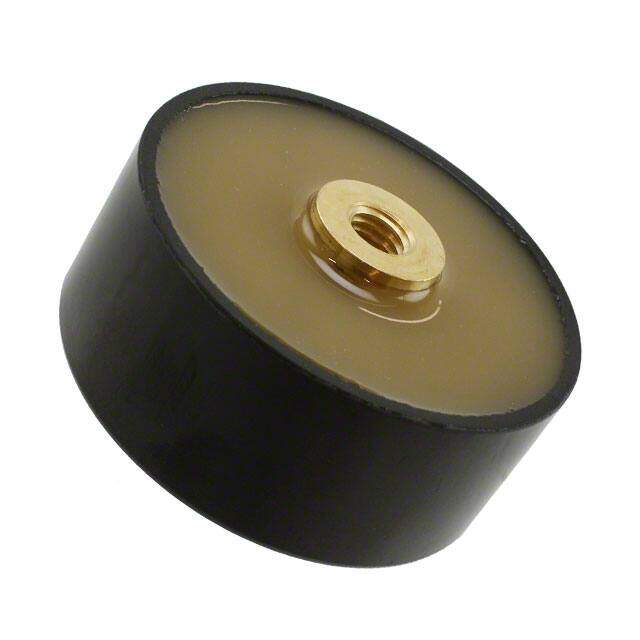

UGE3126AY4
RoHS
RoHS compliant
RoHS compliantPackage UGE
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 24KV 2A UGE
PDF
/
Buying Options
Total Price: USD $93.98
Unit Price: USD $93.984
≥1 USD $93.984
≥10 USD $85.7978
≥100 USD $77.611855
Inventory: 168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis Mount, Stud
Mounting Type Chassis Mount
Package / Case UGE
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2003
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
Max Operating Temperature 150°C
Min Operating Temperature -40°C
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Technology AVALANCHE
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 1
JESD-30 Code O-PUPM-X1
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 1mA @ 24000V
Voltage - Forward (Vf) (Max) @ If 18V @ 3A
Case Connection CATHODE
Output Current-Max 0.8A
Voltage - DC Reverse (Vr) (Max) 24000V
Forward Voltage 18V
Max Reverse Voltage (DC) 24kV
Average Rectified Current 2A
Peak Non-Repetitive Surge Current 70A
Non-rep Pk Forward Current-Max 60A
Reverse Voltage 24kV
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
