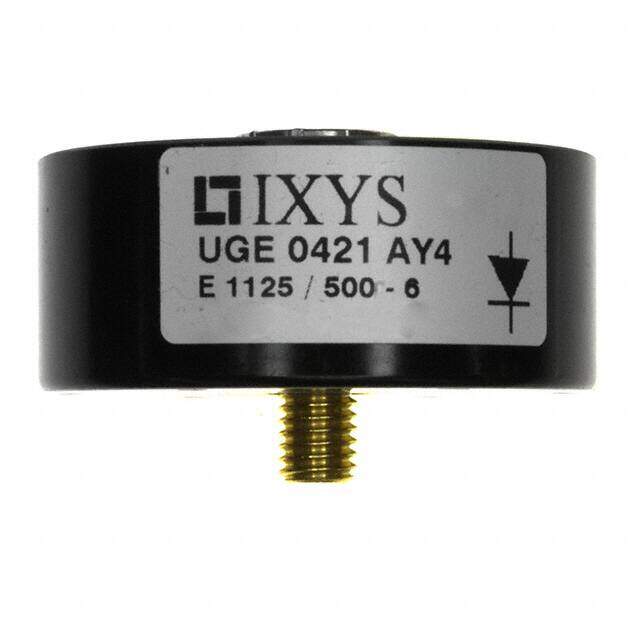

UGE0421AY4
RoHS
RoHS compliant
RoHS compliantPackage UGE
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 3.2KV 22.9A UGE
PDF
/
Buying Options
Total Price: USD $138.58
Unit Price: USD $138.58316
≥1 USD $138.58316
≥198 USD $55.295409
≥498 USD $53.448159
≥1002 USD $52.535694
Inventory: 2256
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Reverse Voltage 3.2kV
Peak Non-Repetitive Surge Current 120A
Max Repetitive Reverse Voltage (Vrrm) 3.2kV
Peak Reverse Current 1mA
Number of Phases 1
Average Rectified Current 22.9A
Max Reverse Voltage (DC) 3.2kV
Forward Voltage 6.25V
Voltage - DC Reverse (Vr) (Max) 3200V
Application HIGH VOLTAGE
Output Current-Max 7.4A
Max Surge Current 300A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 2.72V @ 55A
Current - Reverse Leakage @ Vr 2mA @ 3200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-PUPM-X1
Pin Count 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Technology AVALANCHE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 150°C
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2003
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case UGE
Mounting Type Chassis Mount
Mount Chassis Mount, Stud
Supply Chain
Factory Lead Time 16 Weeks
