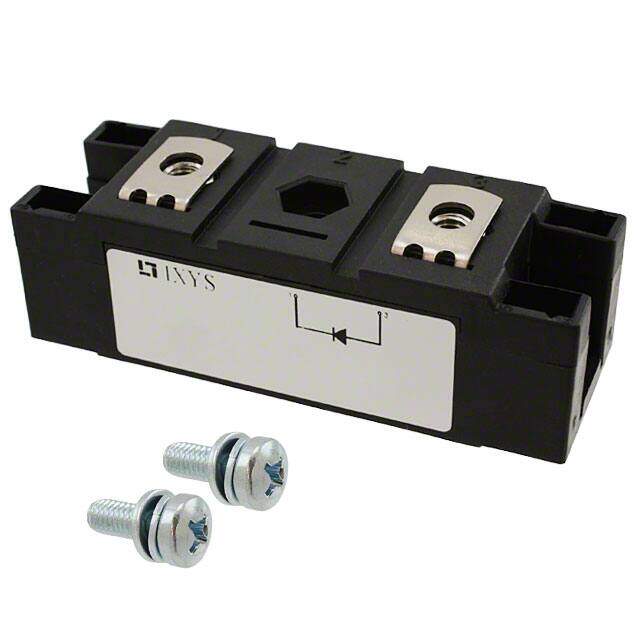

MEO500-06DA
RoHS
RoHS compliant
RoHS compliantPackage Y4-M6
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 514A Y4-M6
PDF
/
Buying Options
Total Price: USD $70.74
Unit Price: USD $70.7432
≥1 USD $70.7432
≥10 USD $64.58144
≥100 USD $58.419768
Inventory: 124
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Max Forward Surge Current (Ifsm) 4.8kA
Reverse Voltage 600V
Peak Non-Repetitive Surge Current 5.28kA
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 24mA
Reverse Recovery Time 300 ns
Average Rectified Current 514A
Max Reverse Voltage (DC) 600V
Forward Voltage 1.52V
Current - Average Rectified (Io) 514A
Voltage - DC Reverse (Vr) (Max) 600V
Operating Temperature - Junction -40°C~150°C
Voltage - Forward (Vf) (Max) @ If 1.52V @ 520A
Current - Reverse Leakage @ Vr 24mA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2000
Packaging Bulk
Physical
Supplier Device Package Y4-M6
Number of Pins 2
Package / Case Y4-M6
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 24 Weeks
