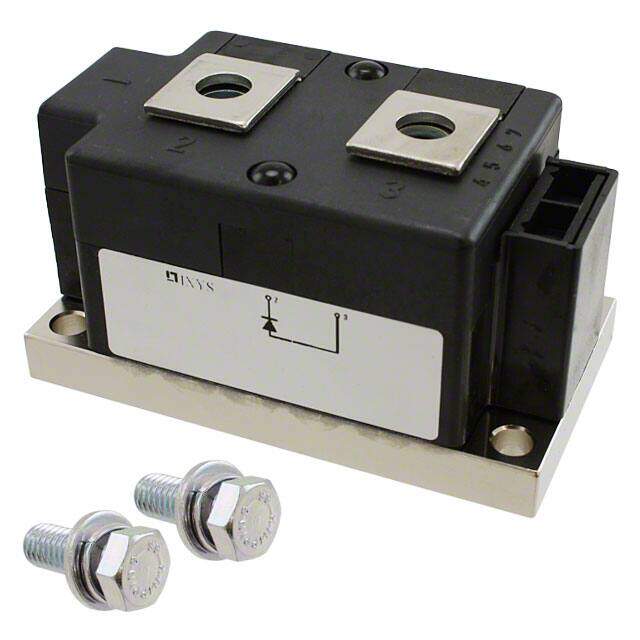

MDO500-22N1
RoHS
RoHS compliant
RoHS compliantPackage Y1-CU
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2.2KV 560A Y1-CU
PDF
/
Buying Options
Total Price: USD $388.76
Unit Price: USD $388.761506
≥1 USD $388.761506
≥200 USD $155.119135
≥500 USD $149.934493
≥1000 USD $147.374338
Inventory: 6281
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Reverse Voltage 2.2kV
Peak Non-Repetitive Surge Current 16kA
Capacitance @ Vr, F 576pF @ 700V 1MHz
Average Rectified Current 560A
Max Reverse Voltage (DC) 2.2kV
Forward Voltage 1.3V
Current - Average Rectified (Io) 560A
Voltage - DC Reverse (Vr) (Max) 2200V
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1200A
Current - Reverse Leakage @ Vr 30mA @ 2200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Base Part Number MD*500
Min Operating Temperature -40°C
Max Operating Temperature 140°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2000
Packaging Bulk
Physical
Supplier Device Package Y1-CU
Number of Pins 2
Package / Case Y1-CU
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
Supply Chain
Factory Lead Time 28 Weeks
