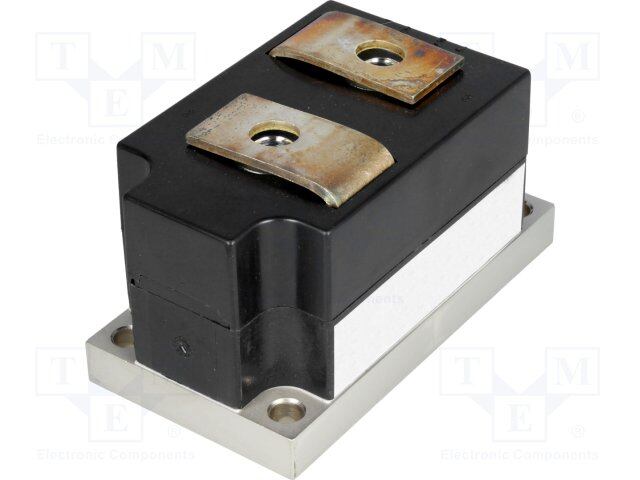

MDO500-16N1
RoHS
RoHS compliant
RoHS compliantPackage Y1-CU
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 1.6KV 560A Y1-CU
PDF
/
Buying Options
Total Price: USD $319.33
Unit Price: USD $319.326164
≥1 USD $319.326164
≥200 USD $127.414319
≥500 USD $123.156585
≥1000 USD $121.052006
Inventory: 1241
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case Y1-CU
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2000
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 140°C
Min Operating Temperature -40°C
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MD*500
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 30mA @ 1600V
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1200A
Case Connection ISOLATED
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1600V
Forward Voltage 1.3V
Max Reverse Voltage (DC) 1.6kV
Average Rectified Current 560A
Number of Phases 1
Capacitance @ Vr, F 762pF @ 400V 1MHz
Peak Non-Repetitive Surge Current 16kA
Non-rep Pk Forward Current-Max 15000A
Reverse Voltage 1.6kV
Compliance
RoHS Status ROHS3 Compliant
