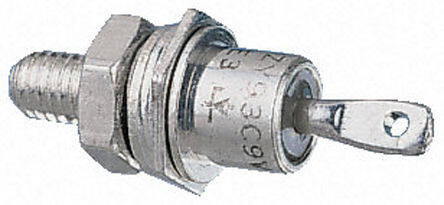

DSI75-08B
RoHS
RoHS compliant
RoHS compliantPackage DO-203AB, DO-5, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Rectifier diode 800 V 110 A DO-203AB, DSI75-08B, Ixys
PDF
/
Inventory: 8411
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 17mm
Height 38.3mm
Technical
Max Forward Surge Current (Ifsm) 1.5kA
Reverse Voltage 800V
Peak Non-Repetitive Surge Current 1.5kA
Max Repetitive Reverse Voltage (Vrrm) 800V
Peak Reverse Current 6mA
Number of Phases 1
Average Rectified Current 110A
Max Reverse Voltage (DC) 800V
Forward Voltage 1.17V
Application GENERAL PURPOSE
Max Surge Current 1.4kA
Operating Temperature - Junction -40°C~180°C
Forward Current 110A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.17V @ 150A
Current - Reverse Leakage @ Vr 6mA @ 800V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-MUPM-D1
Pin Count 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology AVALANCHE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 180°C
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2000
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-203AB, DO-5, Stud
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Factory Lead Time 18 Weeks
