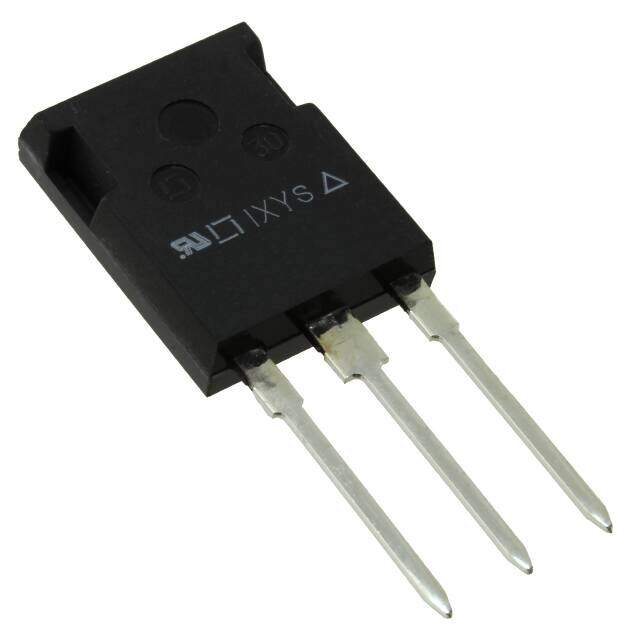

DSEP30-12CR
RoHS
RoHS compliant
RoHS compliantPackage ISOPLUS247?
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN 1.2KV 30A ISOPLUS247
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.14885
≥1 USD $1.14885
≥10 USD $1.08382
≥100 USD $1.02248
≥500 USD $0.9646
≥1000 USD $0.91
≥3000 USD $0.85849
Inventory: 4253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case ISOPLUS247?
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Tube
Published 2011
Series HiPerDynFRED?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 175°C
Min Operating Temperature -55°C
Additional Feature FREE WHEELING, SNUBBER DIODE, UL RECOGNIZED
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Technology AVALANCHE
Pin Count 2
Number of Elements 1
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 250μA @ 1200V
Voltage - Forward (Vf) (Max) @ If 4.98V @ 30A
Case Connection ISOLATED
Forward Current 30A
Operating Temperature - Junction -55°C~175°C
Max Surge Current 250A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1200V
Forward Voltage 5V
Max Reverse Voltage (DC) 1.2kV
Average Rectified Current 30A
Number of Phases 1
Reverse Recovery Time 15ns
Peak Reverse Current 250μA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Non-Repetitive Surge Current 250A
Reverse Voltage 1.2kV
Max Forward Surge Current (Ifsm) 250A
Recovery Time 20 ns
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
