DSEP15-12CR
RoHS
RoHS compliant
RoHS compliantPackage ISOPLUS247?
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description

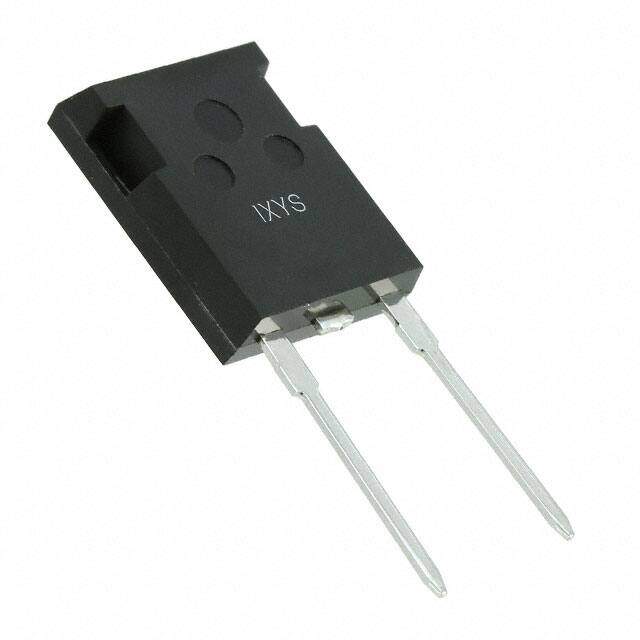

DSEP15 Series 1200 V 15 A Epitaxial Diode with Soft Recovery - ISOPLUS247-2
PDF
/
Buying Options
Total Price: USD $9.23
Unit Price: USD $9.2312
≥1 USD $9.2312
≥10 USD $7.37147
≥100 USD $6.59567
≥500 USD $5.819678
≥1000 USD $5.237716
Inventory: 319
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Recovery Time 20 ns
Max Forward Surge Current (Ifsm) 110A
Reverse Voltage 1.2kV
Peak Non-Repetitive Surge Current 110A
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 100μA
Reverse Recovery Time 20 ns
Number of Phases 1
Average Rectified Current 15A
Max Reverse Voltage (DC) 1.2kV
Forward Voltage 600mV
Voltage - DC Reverse (Vr) (Max) 1200V
Application FAST SOFT RECOVERY
Max Surge Current 110A
Operating Temperature - Junction -55°C~175°C
Forward Current 15A
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 4.04V @ 15A
Current - Reverse Leakage @ Vr 100μA @ 1200V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 2
Qualification Status Not Qualified
JESD-30 Code R-PSFM-T2
Pin Count 2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE, UL RECOGNIZED
Min Operating Temperature -55°C
Max Operating Temperature 175°C
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series HiPerDynFRED?
Published 2000
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 247
Package / Case ISOPLUS247?
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 28 Weeks
