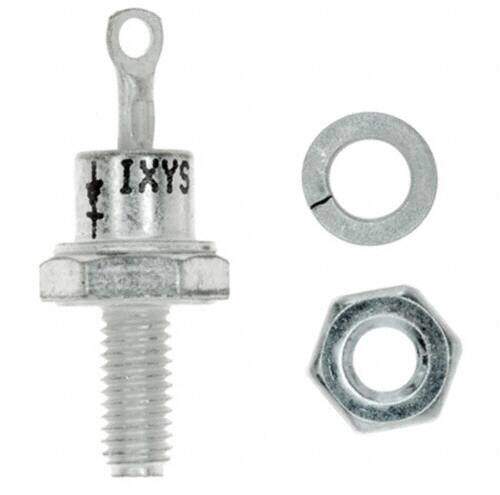

DSA9-12F
RoHS
RoHS compliant
RoHS compliantPackage DO-203AA, DO-4, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE AVALANCHE 1.2KV 11A DO203
PDF
/
Buying Options
Total Price: USD $15.99
Unit Price: USD $15.989517
≥1 USD $15.989517
≥10 USD $14.787328
Inventory: 11
Minimum: 1
-
+
Technical Details
Technical
JESD-30 Code O-MUPM-D1
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Avalanche
Current - Reverse Leakage @ Vr 3mA @ 1200V
Voltage - Forward (Vf) (Max) @ If 1.4V @ 36A
Case Connection ANODE
Operating Temperature - Junction -40°C~180°C
Max Surge Current 250A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1200V
Forward Voltage 1.4V
Max Reverse Voltage (DC) 1.2kV
Average Rectified Current 11A
Number of Phases 1
Peak Reverse Current 3mA
Peak Non-Repetitive Surge Current 265A
Reverse Voltage 1.2kV
Pin Count 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 180°C
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2008
Packaging Bulk
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-203AA, DO-4, Stud
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
