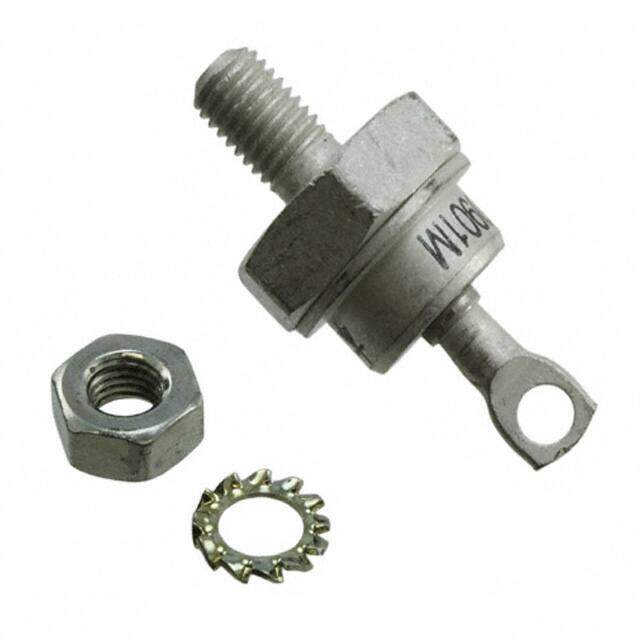

DSA75-16B
RoHS
RoHS compliant
RoHS compliantPackage DO-203AB, DO-5, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE AVALANCHE 1.6KV 110A DO203
PDF
/
Inventory: 6922
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Chassis, Stud
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2000
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
ECCN Code EAR99
Max Operating Temperature 180°C
Min Operating Temperature -40°C
HTS Code 8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position UPPER
Terminal Form SOLDER LUG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 1
JESD-30 Code O-MUPM-D1
Qualification Status Not Qualified
Number of Elements 1
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Avalanche
Current - Reverse Leakage @ Vr 6mA @ 1600V
Voltage - Forward (Vf) (Max) @ If 1.17V @ 150A
Case Connection ANODE
Operating Temperature - Junction -40°C~180°C
Max Surge Current 1.4kA
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1600V
Forward Voltage 1.17V
Max Reverse Voltage (DC) 1.6kV
Average Rectified Current 110A
Number of Phases 1
Peak Reverse Current 6mA
Peak Non-Repetitive Surge Current 1.5kA
Non-rep Pk Forward Current-Max 1400A
Reverse Voltage 1.6kV
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
