DSA1-18D
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description

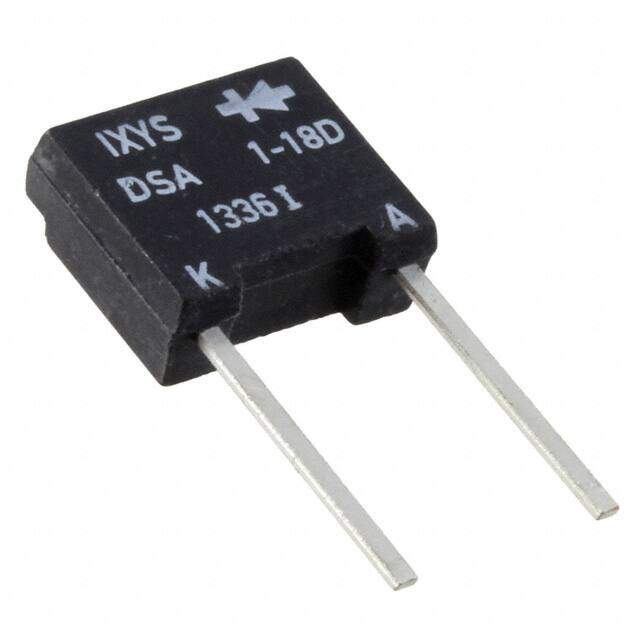

Rectifier diode 1800 V 2.3 A Radial, DSA1-18D, Ixys
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $3.95472
≥100 USD $3.199328
≥500 USD $2.435066
Inventory: 156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 247
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2011
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Max Junction Temperature (Tj) 150°C
Max Forward Surge Current (Ifsm) 110A
Peak Non-Repetitive Surge Current 118A
Max Repetitive Reverse Voltage (Vrrm) 1.8kV
Peak Reverse Current 700μA
Number of Phases 1
Average Rectified Current 2.3A
Max Reverse Voltage (DC) 1.8kV
Forward Voltage 1.34V
Voltage - DC Reverse (Vr) (Max) 1800V
Application GENERAL PURPOSE
Max Surge Current 110A
Operating Temperature - Junction -40°C~150°C
Max Reverse Leakage Current 700μA
Forward Current 7A
Voltage - Forward (Vf) (Max) @ If 1.34V @ 7A
Output Current 2.3A
Current - Reverse Leakage @ Vr 700μA @ 1800V
Diode Type Avalanche
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Polarity Standard
Number of Elements 1
JESD-30 Code R-PSIP-T2
Current Rating 7A
Voltage - Rated DC 1.8kV
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 9mm
