DS75-12B
RoHS
RoHS compliant
RoHS compliantPackage DO-203AB, DO-5, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description

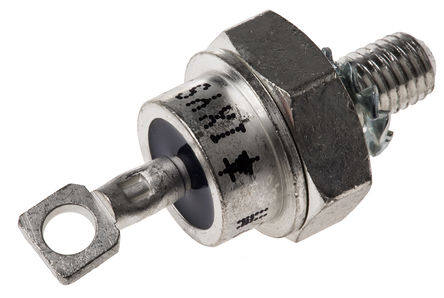

IXYS SEMICONDUCTOR DS75-12B DIODE, REC, 1200V, 110A, STUD, DO5
PDF
/
Inventory: 5059
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 17mm
Length 19.63mm
Height 38.3mm
Technical
Max Forward Surge Current (Ifsm) 1.5kA
Reverse Voltage 1.2kV
Peak Non-Repetitive Surge Current 1.5kA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Peak Reverse Current 6mA
Number of Phases 1
Average Rectified Current 110A
Max Reverse Voltage (DC) 1.2kV
Forward Voltage 1.17V
Voltage - DC Reverse (Vr) (Max) 1200V
Application GENERAL PURPOSE
Max Surge Current 1.4kA
Operating Temperature - Junction -40°C~180°C
Forward Current 110A
Case Connection ANODE
Voltage - Forward (Vf) (Max) @ If 1.17V @ 150A
Current - Reverse Leakage @ Vr 6mA @ 1200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-MUPM-D1
Pin Count 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form SOLDER LUG
Terminal Position UPPER
Technology AVALANCHE
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -40°C
Max Operating Temperature 180°C
ECCN Code EAR99
Number of Terminations 1
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Published 2000
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 2
Package / Case DO-203AB, DO-5, Stud
Mounting Type Chassis, Stud Mount
Mount Chassis, Stud
Supply Chain
Factory Lead Time 6 Weeks
Alternative Model
