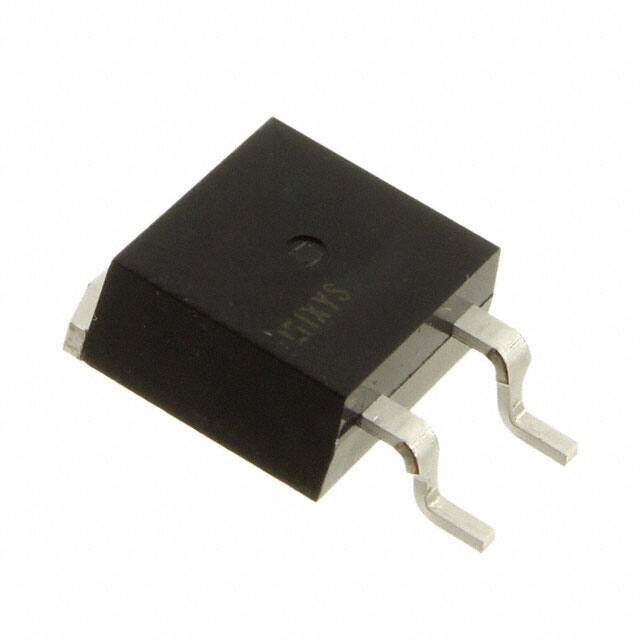

DNA30E2200PZ-TRL
RoHS
RoHS compliant
RoHS compliantPackage TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2.2KV 30A TO263
PDF
/
Buying Options
Total Price: USD $4.5
Unit Price: USD $4.4968
≥1 USD $4.4968
≥10 USD $3.77256
≥100 USD $3.05184
Inventory: 1195
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Reverse Current-Max 40μA
Non-rep Pk Forward Current-Max 340A
Capacitance @ Vr, F 7pF @ 700V 1MHz
Rep Pk Reverse Voltage-Max 2200V
Number of Phases 1
Current - Average Rectified (Io) 30A
Voltage - DC Reverse (Vr) (Max) 2200V
Application HIGH VOLTAGE
Output Current-Max 30A
Operating Temperature - Junction -55°C~150°C
Case Connection ANODE
Voltage - Forward (Vf) (Max) @ If 1.26V @ 30A
Current - Reverse Leakage @ Vr 40μA @ 2200V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Power Dissipation-Max 210W
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-PSSO-G2
Reference Standard IEC-60747
Base Part Number DNA30E2200
Terminal Form GULL WING
Terminal Position SINGLE
Additional Feature LOW LEAKAGE CURRENT, PD-CASE
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Physical
Diode Element Material SILICON
Surface Mount YES
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Alternative Model
