DGS17-03CS
RoHS
/

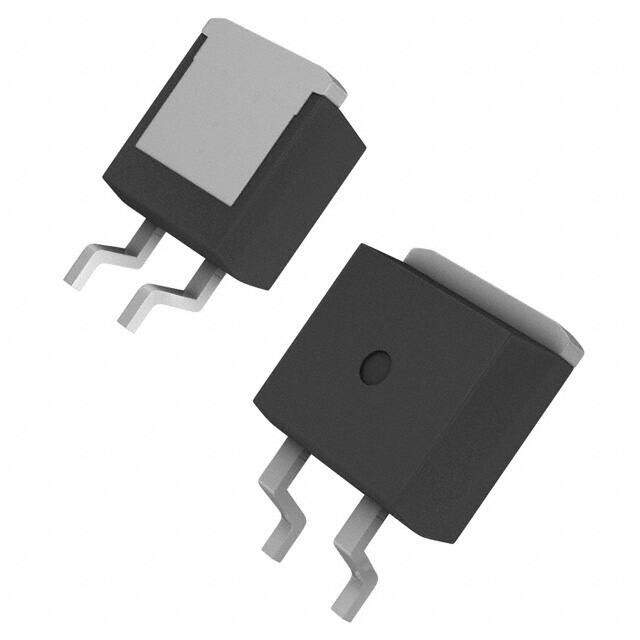

Package TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 300V 29A TO252AA
PDF
/
Inventory: 6814
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Diode Element Material GALLIUM ARSENIDE
Technical
Packaging Tape & Reel (TR)
Published 2005
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 175°C
Min Operating Temperature -55°C
HTS Code 8541.10.00.80
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 4
JESD-30 Code R-PSSO-G2
Qualification Status Not Qualified
Number of Elements 1
Power Dissipation-Max 34W
Element Configuration Single
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 250μA @ 300V
Voltage - Forward (Vf) (Max) @ If 1.9V @ 7.5A
Case Connection CATHODE
Max Reverse Leakage Current 250μA
Operating Temperature - Junction -55°C~175°C
Max Surge Current 80A
Application EFFICIENCY
Max Reverse Voltage (DC) 300V
Average Rectified Current 29A
Number of Phases 1
Reverse Recovery Time 23 ns
JEDEC-95 Code TO-252AA
Recovery Time 23 ns
Compliance
RoHS Status RoHS Compliant
Alternative Model
