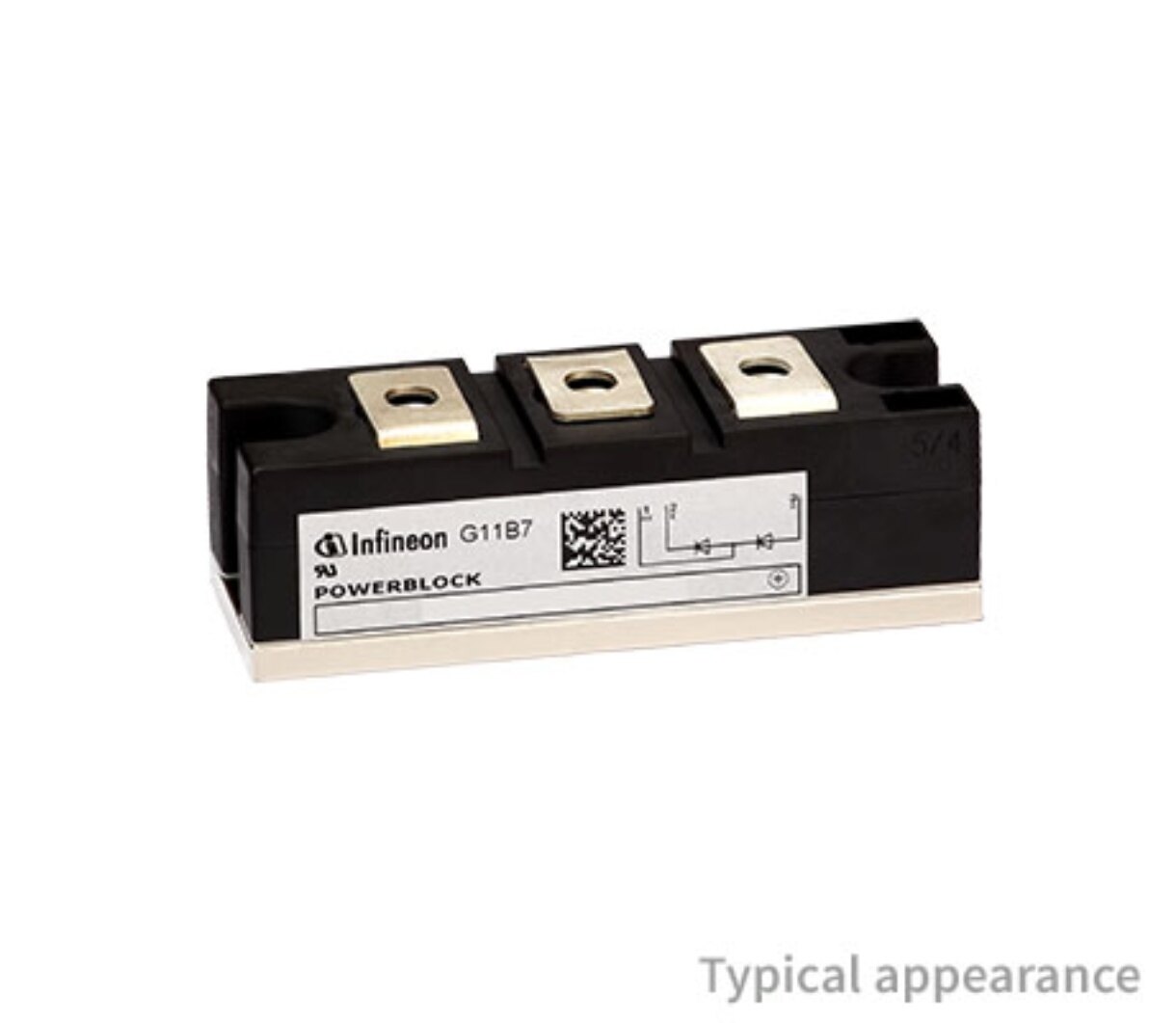

ND171N18KHPSA1
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GP 1.8KV 171A BG-PB34-1
PDF
/
Inventory: 7155
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Chassis Mount
Package / Case Module
Surface Mount NO
Diode Element Material SILICON
Technical
Packaging Tray
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XUFM-X2
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 20mA @ 1800V
Case Connection ISOLATED
Operating Temperature - Junction -40°C~135°C
Output Current-Max 171A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1800V
Current - Average Rectified (Io) 171A
Number of Phases 1
Rep Pk Reverse Voltage-Max 1800V
Non-rep Pk Forward Current-Max 5600A
Forward Voltage-Max 1.26V
Reverse Current-Max 20000μA
Compliance
RoHS Status ROHS3 Compliant
