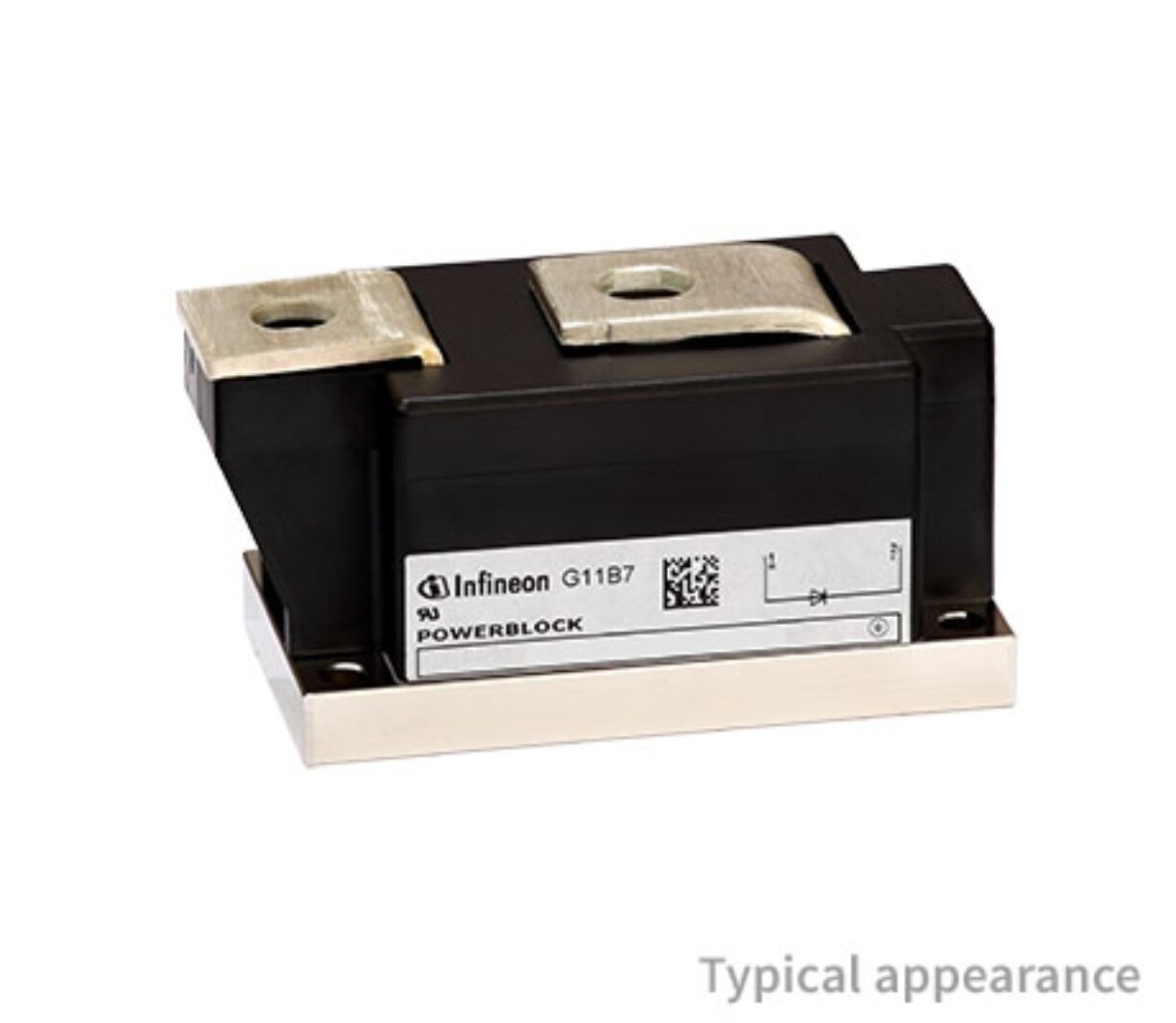

DZ540N26KHPSA1
RoHS
/
Package Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2.6KV 732A MODULE
PDF
/
Inventory: 5026
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Max Forward Surge Current (Ifsm) 14kA
Reverse Voltage 2.6kV
Non-rep Pk Forward Current-Max 14000A
Max Repetitive Reverse Voltage (Vrrm) 2.6kV
Number of Phases 1
Voltage - DC Reverse (Vr) (Max) 2600V
Halogen Free Not Halogen Free
Application GENERAL PURPOSE
Operating Temperature - Junction -40°C~150°C
Case Connection ISOLATED
Voltage - Forward (Vf) (Max) @ If 1.64V @ 2200A
Output Current 732A
Current - Reverse Leakage @ Vr 40mA @ 2600V
Diode Type Standard
Speed Standard Recovery >500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
JESD-30 Code R-XUFM-X2
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
HTS Code 8541.10.00.80
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Published 2006
Packaging Bulk
Physical
Diode Element Material SILICON
Number of Pins 540
Surface Mount NO
Package / Case Module
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
