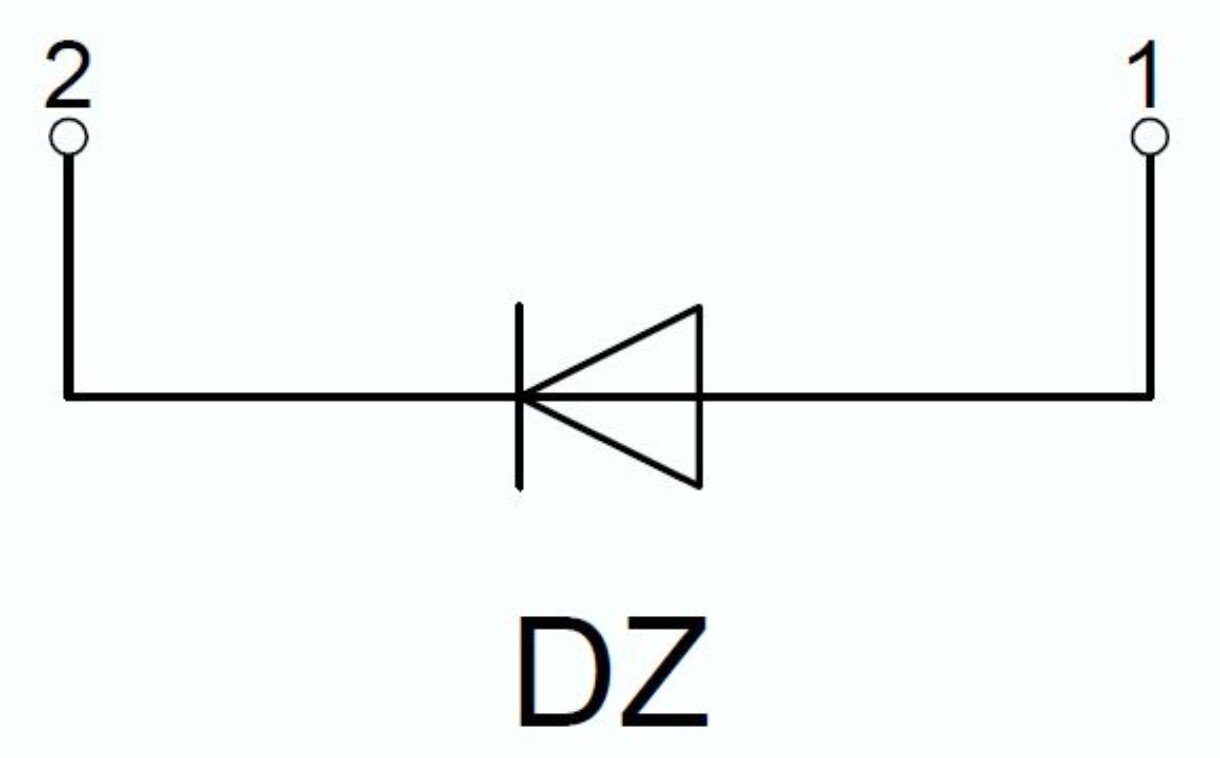

DZ1070N26KHPSA1
RoHS
RoHS compliant
RoHS compliantPackage Module
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 2.6KV 1070A MOD
PDF
/
Buying Options
Total Price: USD $1272.13
Unit Price: USD $1272.126578
≥1 USD $1272.126578
≥200 USD $507.586834
≥500 USD $490.625478
≥1000 USD $482.243925
Inventory: 3537
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Chassis Mount
Package / Case Module
Surface Mount NO
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Additional Feature UL RECOGNIZED
HTS Code 8541.10.00.80
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XUFM-X2
Operating Temperature (Max) 150°C
Number of Elements 1
Configuration SINGLE
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 150mA @ 2600V
Voltage - Forward (Vf) (Max) @ If 1.52V @ 3400A
Case Connection ISOLATED
Operating Temperature - Junction -40°C~150°C
Output Current-Max 1070A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 2600V
Current - Average Rectified (Io) 1070A
Number of Phases 1
Rep Pk Reverse Voltage-Max 2600V
Non-rep Pk Forward Current-Max 35000A
Reverse Current-Max 150000μA
Compliance
RoHS Status RoHS Compliant
