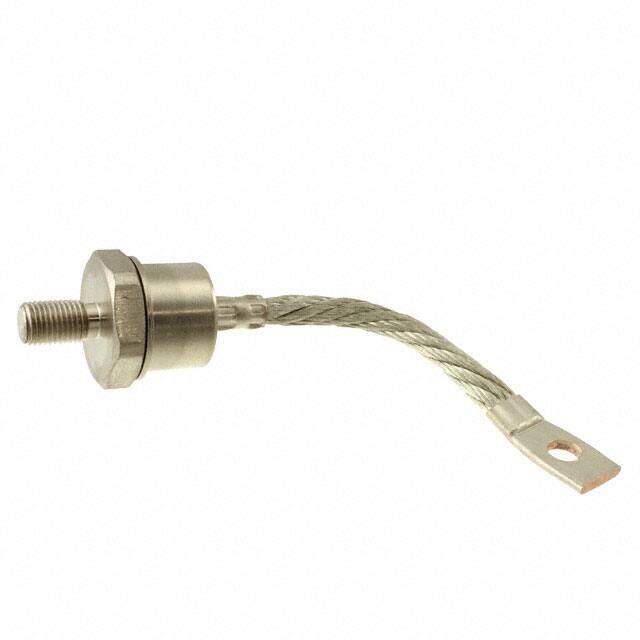

S150QR
RoHS
RoHS compliant
RoHS compliantPackage DO-205AA, DO-8, Stud
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
Rectifiers 1200V 150A REV Leads Std. Recovery
PDF
/
Buying Options
Total Price: USD $34.92
Unit Price: USD $34.920615
≥1 USD $34.920615
≥10 USD $32.943976
≥100 USD $31.079224
≥500 USD $29.320023
≥1000 USD $27.660396
Inventory: 1150
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status PRODUCTION (Last Updated: 6 months ago)
Physical
Contact Material Brass
Contact Plating Gold
Mount Cable, Chassis, Stud
Mounting Type Chassis, Stud Mount
Package / Case DO-205AA, DO-8, Stud
Number of Pins 2
Diode Element Material SILICON
Technical
Packaging Bulk
Published 2012
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 1
Termination Crimp
Connector Type Connector, PCB, Power
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Terminal Position UPPER
Orientation Straight
Terminal Form HIGH CURRENT CABLE
Shielding Unshielded
Peak Reflow Temperature (Cel) NOT SPECIFIED
Depth 5.33mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code O-MUPM-H1
Number of Elements 1
Contact Resistance 10mOhm
Max Current Rating 17A
Element Configuration Single
Speed Standard Recovery >500ns, > 200mA (Io)
Diode Type Standard, Reverse Polarity
Current - Reverse Leakage @ Vr 10μA @ 600V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 150A
Case Connection ANODE
Forward Current 150A
Operating Temperature - Junction -65°C~200°C
Max Surge Current 3.14kA
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 1200V
Forward Voltage 1.2V
Max Reverse Voltage (DC) 1.2kV
Average Rectified Current 150A
Number of Phases 1
Peak Reverse Current 10μA
Max Repetitive Reverse Voltage (Vrrm) 1.2kV
Reverse Voltage 1.2kV
Natural Thermal Resistance 0.35 °C/W
